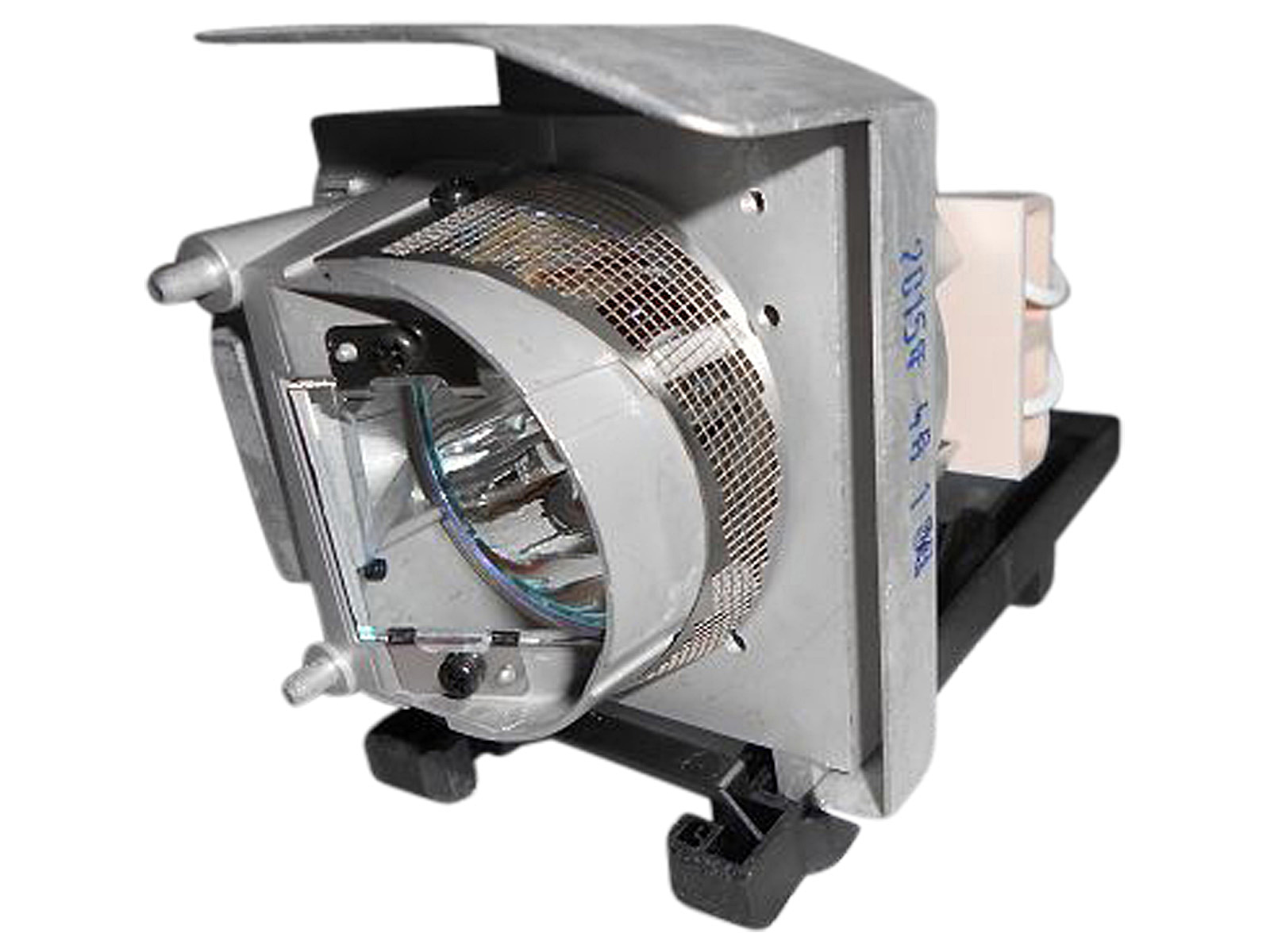

The projector W307USTi by Optoma operates as a 3D-DLP device with 3500 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast of 15000:1. According to Optoma, the lamp has a durability of 3000 hours. Regarding projection size, the value of 3500 ANSI lumens allows for an image width of up to 601 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 401 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2013 and is no longer part of Optoma's current product range. However, it remains one of the frequently accessed models in our database.
Display Type
1 x 0,65" DC3 DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3500
Screen
1400 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2333 min. Lumen
0,093 min. Lumen
Offset
75% 32 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Calculated brightness quality The screen width may also be larger. Perfect
70 cm (no Zoom)
Lux:
1400 Lux
Contrast:
15000:1
Candela pro m²:
445 cd/m²
Foot-Lamberts:
130 fL
94 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,6 f=7,35mm
Throw Ratio
0,35:1
Audio
10W
Connections
HDMI 1.4a in
2 x D-sun 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Mikrofon in
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot Password protection Remote control with laser pointer Control via web browser Lan network compatible. Short-throw projector Crestron®-Software compatible. Digital Zoom Whiteboard function
Real Full HD 3D
