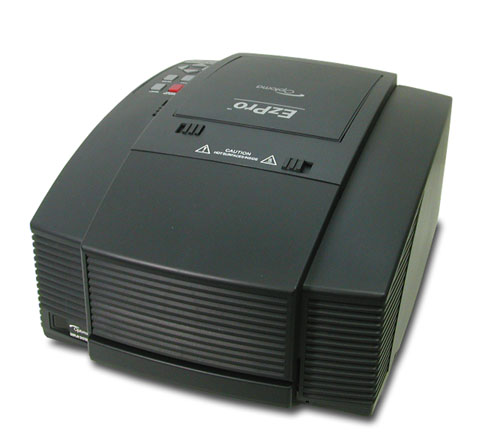

The EzPro / EP550 is a LED-LCD projector by Optoma, whose specifications list 300 ANSI lumens, a contrast of 150:1 and a SVGA 800 x 600 resolution. The runtime of the lamp in this model is estimated at 300 hours before a replacement is necessary. A look at the light output reveals: The 300 ANSI lumens are sufficient to illuminate an image width of up to 151 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 101 cm. Since entering the market in 1996, production has been discontinued; the manufacturer no longer actively offers the model. Important maintenance note: It is no longer possible to procure replacement lamps for this model.
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes
VGA, VESA, Mac, PC98, FM TownsNTSC / PAL / SECAM
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
1 Eingang PC (15 Pin Mini D-sub), 1 Computer Monitor Ausgang (15 Pin Mini D-sub), 1 x Mauseingang (D-SUB 9 Pin), 1 x S-Video in (4 Pin Mini DIN), 1 Eingang für Composite Video (RCA), 2 x Audio Eingang (RCA L/R), 1 x Audio Ausgang (RCA, L/R)
Ceiling Mounting
-
Power
540W standby 20W
Size WxHxD
259 x 162 x 317 mm (10,2"x6,4"x12,5") 13,3 L/dm³
Operating Noise
43dB
Key: 115 cm
Without offset
Key: 115 cm
Weight
4,20 kg / 9,26 lbs.
Keystone
Vert.: +/-20°
Illumination
-
Frequenz
H-sync: 20-90 kHz V-sync: 50-85 Hz Range max.: 60 MHz
Freeze
