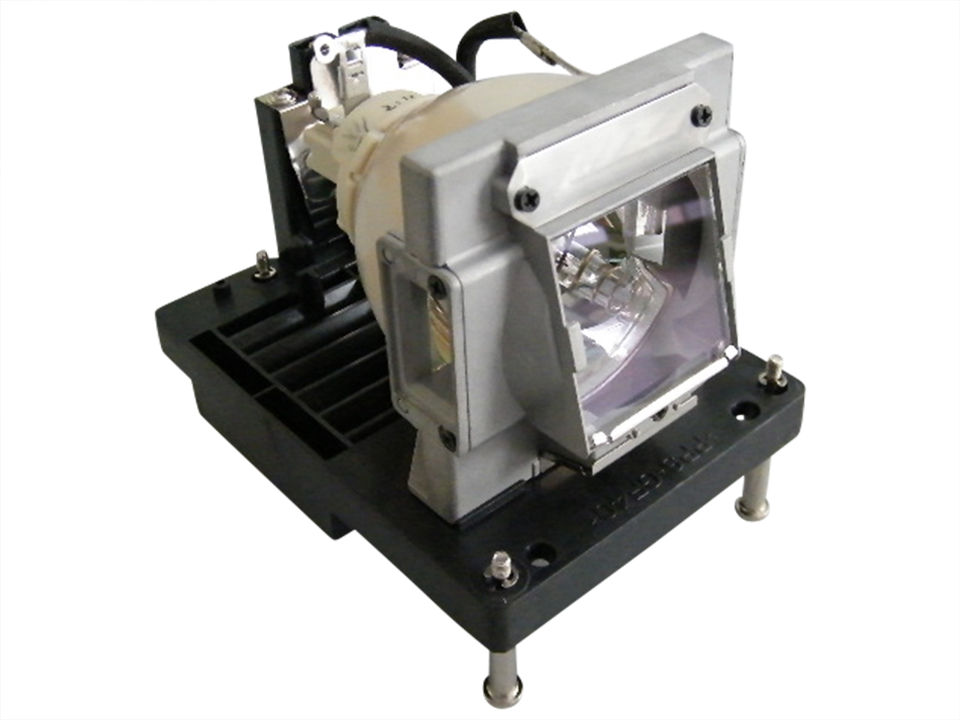

This projector from Nec utilizes Laser-BrilliantColor-DLP technology, achieving 7500 ANSI lumens and a contrast of 2100:1 at a resolution of WUXGA 1920 x 1200. In operating mode, the installed projector lamp offers a lifespan of 1500 hours. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator. A look at the light output reveals: The 7500 ANSI lumens are sufficient to illuminate an image width of up to 880 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 587 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. This model dates back to 2014 and is no longer part of Nec's current product range.
Display Type
1 x 0,67"DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
2100:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
5 x BNC RGBHV in
S-Video in
Cinch Video in
RS232C Din 9 pin in
2 x USB Typ A
RJ45 in
Fernbedienung in
Weitere Anschlüsse optional.
Full HD 1080P compatible Direkt Power Off Lens shift Funktion Integrated Mediaplayer Freeze User logo Eco Mode Kensington Slot sRGB Gamma correction Warping Edge Blending Picture-in-Picture Password protection BrilliantColor™ Remote control with laser pointer und mouse control PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. Digital zoom DICOM simulation
Full HD 1080P compatible
