Brief Introduction
Beta 2.5 |

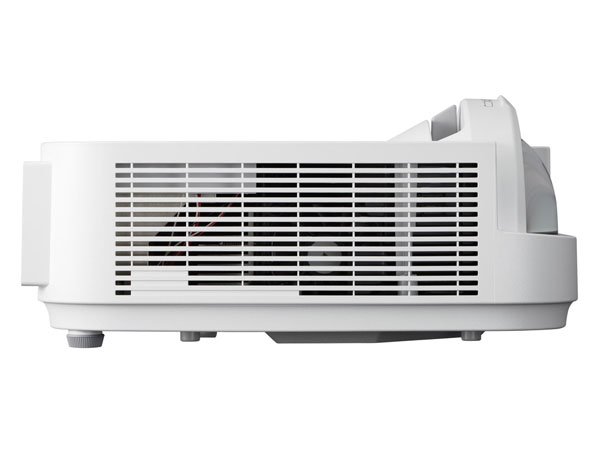

A brief introduction to the Nec M332XS. The DLP projector has an XGA 1024 x 768 resolution and a contrast of 10000:1. Thanks to the lamp, the projector has a lamp life of up to 3500 hours, which converts to over 4.8 years at 2 hours per day. The ambient light sensor allows the projector to automatically optimize the projected image. The integrated media player can play files directly. With a projection ratio of just 0.6:1, this projector never gets in the way. For a 2m wide image, the projector only needs to be 120 cm away from the screen. Playing 1080P and 3D is also no problem for the projector. The projector was launched in 2014 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3300 |
Screen |
1100 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,3300 min. Lumen |
0,11 min. Lumen |
| Offset |
68,81% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: JPEG |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
270 / 162W im Eco Mode Lamp
Article Nr.: NP30LP
|
|
| Light Life |
3500 h. 8000 in Eco Mode |
| Operating Costs |
-
|
|
120 cm (no Zoom)
|
 |
|
Lux: |
1100 Lux |
|
Room light max.: |
220 Lux |
|
Candela pro m²: |
349 cd/m² |
|
Foot-Lamberts: |
102 fL |
|
 |
| 103 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,4 f=6,5mm |
| Throw Ratio |
0,6:1 |
| Audio |
20W |
| Connections |
HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
335 / 246W in Eco Mode |
| Size WxHxD |
368 x 134 x 286 mm (14,5"x5,3"x11,3") 14,1 L/dm³
|
| Operating Noise |
39 / 33 dB in Eco Mode |
|
| Weight |
5,20 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
102 fL
/ max. 500 cm screen width |
| Candela m² |
349 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Freeze
User logo
Eco Mode
Kensington Slot
Password protection
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Ambient Light Sensor.
Digital Zoom
Dicom Simulation
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec M332XS compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
12 |
| Black level: |
|
99 |
Power cons.: |
|
92 |
| Picture Total Points: | 46 |
Projector Total Points: | 65 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
218 (From: 974) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-12
Created: 2014-02-20 14:45:05
|
