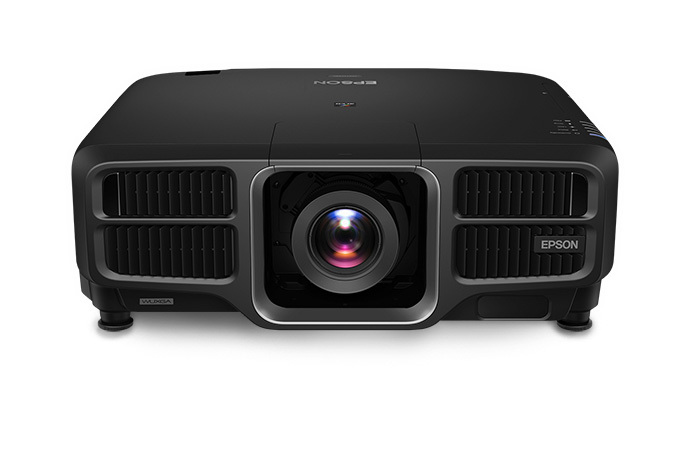

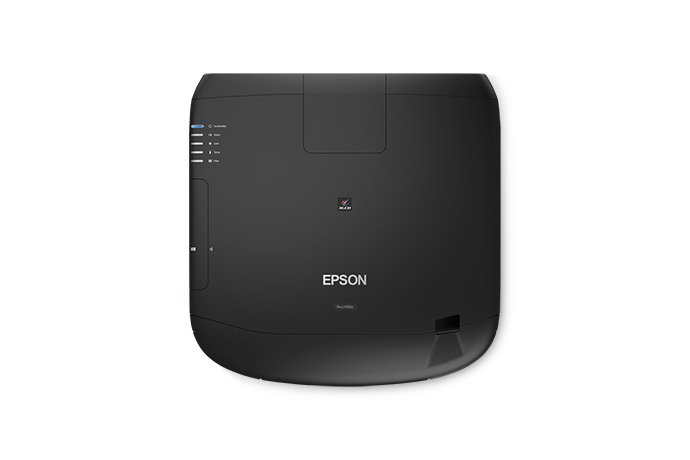

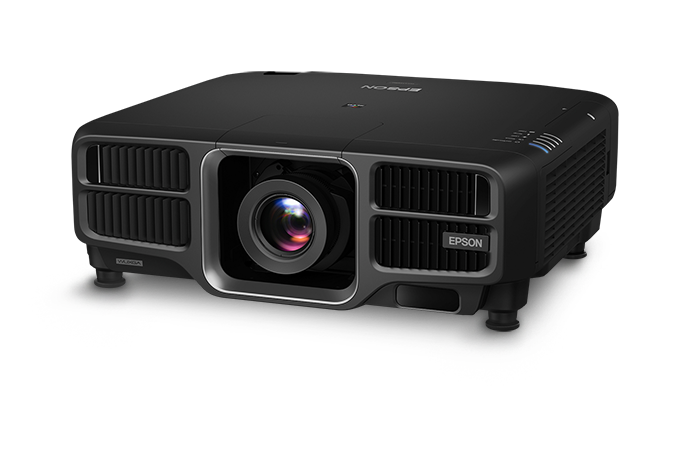

The Epson USA Pro L1755UNL is a Laser-LCD projector offering 15000 ANSI lumens, a contrast of 2500000:1 and a resolution of WUXGA 1920 x 1200. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – calculating to 13.7 years at four hours of use per day. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. A look at the light output reveals: The 15000 ANSI lumens are sufficient to illuminate an image width of up to 1244 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 829 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P and 4K are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Since entering the market in 2019, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 1,03" LCD TFT Panel mit c2 Fine WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
15000 / 10500 im Eco Mode
Screen
6667 Lux (200 cm Screen width)
Contrast
2500000:1
2500000:1
Black Level
0,0060 min. Lumen
0,003 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel HD4K 4096 x 2160 compressed
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
6667 Lux
Contrast:
2500000:1
Candela pro m²:
2121 cd/m²
Foot-Lamberts:
619 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI mit HDCP 2.2 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
Mini Jack Audio in und out
SDI 3G in
RS232C Din 9 pin in
RJ45 in
RJ45 mit HDBaseT in
Full HD 1080P compatible
Epson USA Website
Product Sheet english
