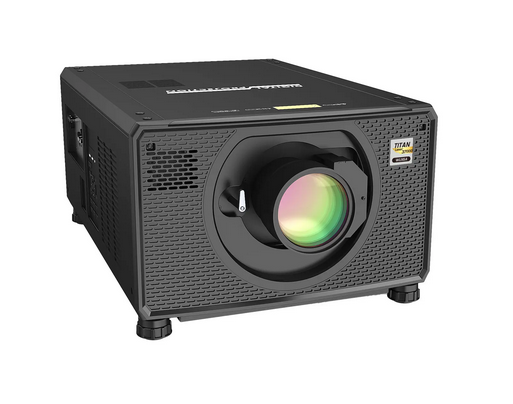

This projector is named Titan Luma 35000 4K-UHD, originates from Digital Projection, and its data sheet shows 31500 ANSI lumens, a contrast of 1600:1 and a resolution of WUXGA 1920 x 1200. This is a laser projector with a light source designed to last for 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. For precise setup, the device features a lens shift mechanism that allows for purely optical image shifting. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator. Regarding projection size, the value of 31500 ANSI lumens allows for an image width of up to 1803 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 1202 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
3 x 0,96" WUXGA DMD DLP Chips WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Phosphor
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
14000 Lux
Contrast:
1600:1
Candela pro m²:
4458 cd/m²
Foot-Lamberts:
1301 fL
73 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
4 x HDMI in (1.4b /2.0b)
Diplay Port 1.2
3G SDI in und out
3D Sync in und out
Wired Remote
12 V trigger out
3d Sync IR out
RS232C Din 9 pin in
2 x RJ45 in
HDBaseT
Ceiling Mounting
Yes, is possible.
Power
2250W Normal
Size WxHxD
525 x 318 x 760 mm (20,7"x12,5"x29,9") 126,88 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot High Dynamic Range (HDR) 360° installable 24/7 continuous operation capable Edge Blending Password protection Control via web browser Lan network compatible. Crestron®-Software compatible. 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation AMX Blanking control for custom input window sizing Scaling available for fixed aspect ratio screens Unscaled processing for pixel mapped display Refresh rate: 60Hz @ 4K Dicom simulation Source Redundancy
Real Full HD 3D
