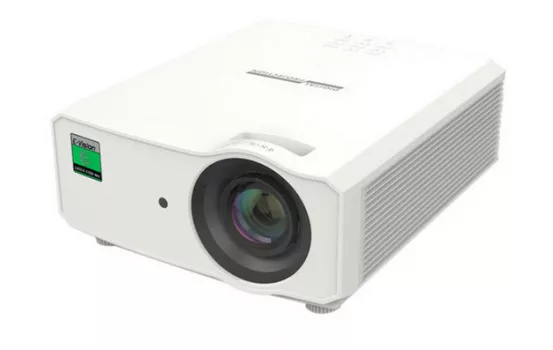

With the E-Vision 6110-WU, Digital Projection offers a 3D-DLP projector that features 5500 ANSI lumens, a contrast of 2200:1 and a resolution of WUXGA 1920 x 1200. The laser technology ensures a specified light source lifespan of up to 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 100 cm. Regarding projection size, the value of 5500 ANSI lumens allows for an image width of up to 753 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 502 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. Equipped with a microphone jack and built-in speakers, audio signals during presentations can be played back directly without an external audio system. This model dates back to 2022 and is no longer part of Digital Projection's current product range.
Display Type
1 x 0,67" DC3 DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5500
Screen
2444 Lux (200 cm Screen width)
Contrast
2200:1 full on/off
2200:1 full on/off
Black Level
2,5000 min. Lumen
1,112 min. Lumen
Offset
60% 11 cm over screen top edge →
SCREEN
+Projector
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
100 cm (no Zoom)
Lux:
2444 Lux
Contrast:
2200:1
Candela pro m²:
778 cd/m²
Foot-Lamberts:
227 fL
68 cm
•
Focus
Powered
Zoom
No Zoom
Objective
-
Throw Ratio
0,5:1
Audio
Nein
Connections
3x HDMI 1.4 in MHL
3G-SDI in und out
Audio Mini Jack in und out
Microphone in
Chinch Audio in
15pin D-Sub in and out
HDBaseT in
3D Sync in und out über BNC
RJ45 in
12V Trigger out
Wired Remote
Real Full HD 3D Full HD 1080P compatible Eco Mode High Dynamic Range (HDR) 24/7 continuous operation capable Picture-in-Picture PJLink™ Control via web browser Lan network compatible. Short-throw projector Crestron®-Software compatible. DICOM Simulation AMX
Real Full HD 3D
Digital Projection Website
Product Sheet english
