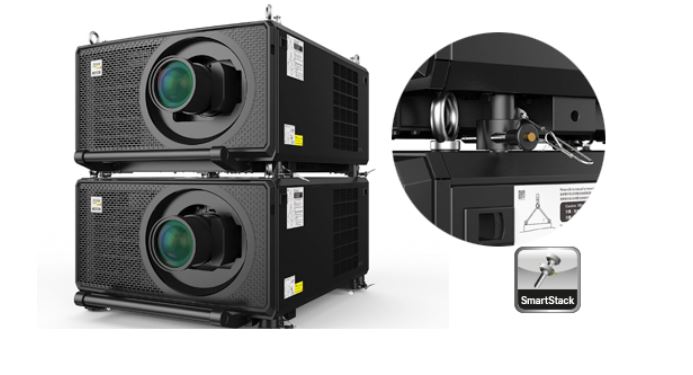

Categorized in the Event segment, the Titan Laser 41000 4K-UHD projector from Digital Projection projects with a UHD (4K2K) 3840 x 2160 resolution, alongside 41000 ANSI lumens and a contrast of 18000:1. Using this laser phosphor technology, the light source runtime is rated at 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projector Calculator is available to calculate the exact dimensions. Looking at practical performance, up to 2057 cm can be illuminated with 41000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1371 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Since entering the market in 2019, production has been discontinued; the manufacturer no longer actively offers the model. However, it remains frequently searched within our database.
Display Type
3 x 0,96" WUXGA DMD UHD 16/9 Ti Digital Light Processing Chip
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | 2D-zu-3D Video Converter
Application
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h. / 40000 h. ECO
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
18222 Lux
Contrast:
18000:1
Candela pro m²:
5801 cd/m²
Foot-Lamberts:
1693 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI in
2x Displayport
12G-SDI in und out
3D Sync in und out
Wired Remote
12V Trigger
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Real Full HD 3D Full HD 1080P compatible Direkt Power Off Blank (Black screen button) User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Gamma correction High Dynamic Range (HDR) Warping 360° installable 24/7 continuous operation capable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Lan network compatible. External video processor included. Crestron®-Software compatible. Dicom Lens converter DMX 10 pre-set positions for zoom lenses
Real Full HD 3D
