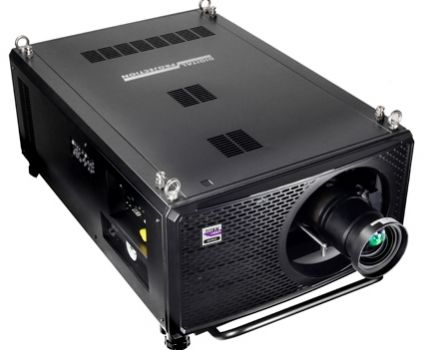

The Titan Laser 26000 4K-UHD is a 3D-Laser-DLP projector by Digital Projection, whose specifications list 22500 ANSI lumens, a contrast of 18000:1 and a WUXGA 1920 x 1200 resolution. With its laser unit, the projector offers a specified light lifespan of 20000 hours, which translates to 13.7 years with 4 hours of daily use. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projection Calculator. A look at the light output reveals: The 22500 ANSI lumens are sufficient to illuminate an image width of up to 1524 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 1016 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. This model dates back to 2019 and is no longer part of Digital Projection's current product range.
Display Type
3 x 0,96" DMD Chip WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
10000 Lux
Contrast:
18000:1
Candela pro m²:
3183 cd/m²
Foot-Lamberts:
929 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
4 x HDMI in (1.4b /2.0b)
Diplay Port 1.2
3G SDI in und out
3D Sync in und out
Wired Remote
12 V trigger out
3d Sync IR out
RS232C Din 9 pin in
2 x RJ45 in
HDBaseT
Ceiling Mounting
Yes, is possible.
Power
3100W
Size WxHxD
970 x 397 x 650 mm (38,2"x15,6"x25,6") 250,31 L/dm³
Real Full HD 3D Full HD 1080P compatible Eco Mode High Dynamic Range (HDR) Edge Blending Picture-in-Picture Lan network compatible. Crestron®-Software compatible. AMX DICOM simulation mode. DMX
Real Full HD 3D
