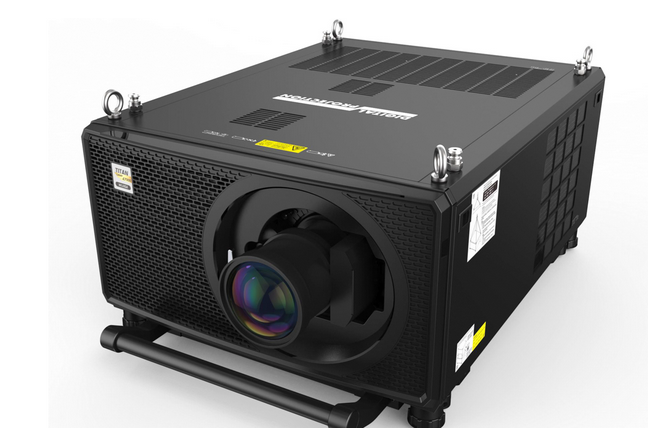

The projector Titan Laser 47000 WU by Digital Projection operates as a 3D-LED-DLP device with 47000 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast of 18000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projector Calculator. A look at the light output reveals: The 47000 ANSI lumens are sufficient to illuminate an image width of up to 2203 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 1469 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable.
Display Type
3 x 0,96" WUXGA DMD Chip WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
20889 Lux
Contrast:
18000:1
Candela pro m²:
6650 cd/m²
Foot-Lamberts:
1941 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein

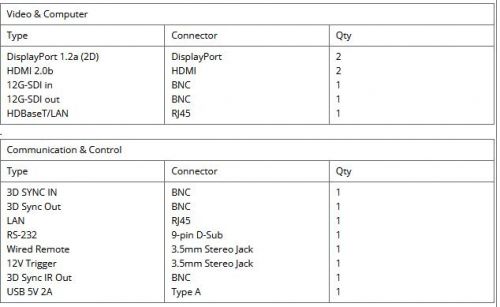

Connections
4 x HDMI in (1.4b /2.0b)
Diplay Port 1.2
3G SDI in und out
3D Sync in und out
Wired Remote
12 V trigger out
3d Sync IR out
RS232C Din 9 pin in
2 x RJ45 in
HDBaseT
Real Full HD 3D Full HD 1080P compatible Eco Mode High Dynamic Range (HDR) Warping 24/7 continuous operation capable Edge Blending PJLink™ Lan network compatible. Crestron®-Software compatible. AMX DICOM Simulation Alert E-Mails from Projector LAN Control-Crestron Roomview™ Color Boost SmartStack-System
