Brief Introduction
Beta 2.5 |
The Benq model W770ST is a DLP projector with HDTV 1280 x 720 resolution and a contrast of 13000:1. The lamp life is up to 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. The projector can illuminate a picture width of up to 508 cm well thanks to its 2500 Ansi lumens. In room light, however, the picture width should ideally be less than 339 cm. The projector can also display 1080P and 3D without any problems. It was launched in 2013 and is no longer offered by the manufacturer Benq.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1111 Lux (200 cm Screen width) |
| Contrast |
13000:1 full on/off |
13000:1 full on/off
|
| Black Level |
0,1923 min. Lumen |
0,085 min. Lumen |
| Offset |
65% show
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
210W Lamp
Article Nr.: 5J.J7K05.001
|
|
| Light Life |
4000 h. 6500 h. in Eco Mode |
| Operating Costs |
-
|
|
144 - 174 cm
|
 |
|
Lux: |
1111 Lux |
|
Room light max.: |
222 Lux |
|
Candela pro m²: |
353 cd/m² |
|
Foot-Lamberts: |
103 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,6-2,87 f=10,2-12,24 mm |
| Throw Ratio |
0,72-0,87:1 show |
| Audio |
1 x 10W |

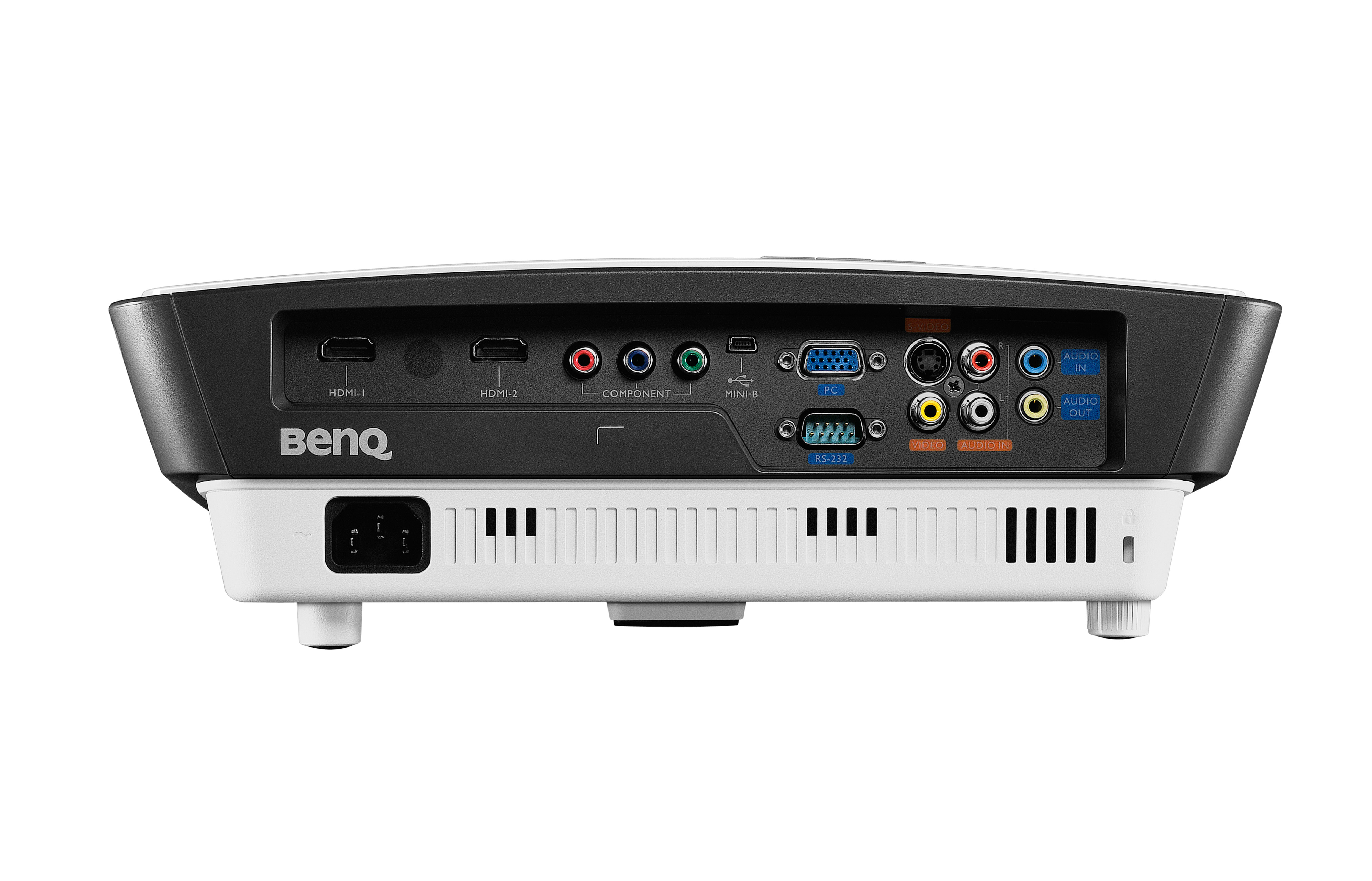

| Connections |
2 x HDMI 1.4 in
D-sub 15 pin in
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio out
USB Typ B in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
275W |
| Size WxHxD |
324,7 x 113,8 x 253,40 mm (12,8"x4,5"x10") 9,26 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
103 fL
/ max. 508 cm screen width |
| Candela m² |
353 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Short-throw projector
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq W770ST compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 43 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
529 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-05-13 15:27:52
|
