Brief Introduction
Beta 2.5 |

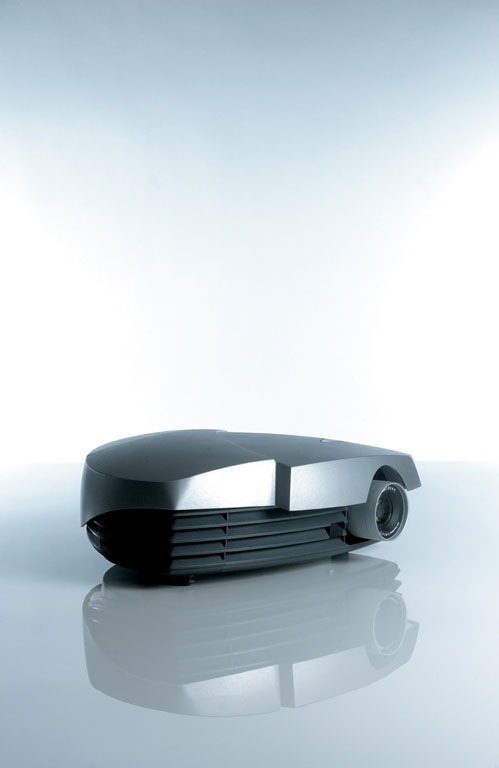

With the CineVersum 60, manufacturer Barco offers a home cinema DLP projector with WPAL 1024 x 576 resolution and a contrast of 2000:1. Including a lens shift function, which provides freedom during installation. Thanks to the brightness of 900 Ansi lumens, a picture width of 305 cm is possible. In room light, the picture should be max. 203 cm wide. With only 30 decibels of operating noise, the model is already very quiet compared to others. The projector is no longer sold by the manufacturer. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
1 x 0,8" DLP Chip
WPAL 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
900 |
Screen |
400 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,4500 min. Lumen |
0,2 min. Lumen |
| Lens shift |
Vert.: +80% --25% manuell
|
| Resolution |
WPAL 1024 x 576
489.824 Pixel |
| Video Modes |
NTSC, PAL, SECAM HDTV |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
200W UHP Lamp
Article Nr.: R9852530
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
340 - 450 cm
|
 |
|
Lux: |
400 Lux |
|
Room light max.: |
80 Lux |
|
Candela pro m²: |
127 cd/m² |
|
Foot-Lamberts: |
37 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
f=30-39 mm |
| Throw Ratio |
1,70-2,25:1 show |
| Audio |
- |
| Connections |
1 Composite Video (RCA connector)
1 S-Video (4 pin mini DIN)
1 Component Video (3 x RCA connectors)
1 RGBHV or Component (5 x RCA connectors)
1 D-sub 15pin
1 DVI mit HDCP
1 RS232 (D-sub9 connector)
12V Trigger 2 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
449 x 156 x 420 mm (17,7"x6,1"x16,5") 29,42 L/dm³
|
| Operating Noise |
30dB |
|
| Weight |
6,00 kg / 13,23 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
- |
| Foot-Lamberts |
37 fL
/ max. 305 cm screen width |
| Candela m² |
127 cd/m² |
| Features |
 Lens shift Funktion manuell
Freeze
Picture-in-Picture
6-segment colour wheel
|
|
- |
In Comparison
The Barco CineVersum 60 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
7 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
67 |
| Black level: |
|
95 |
Power cons.: |
|
0 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
424 (From: 984) |
|
|
|
| In Test
|
-
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| Objektiv | 2.25-3:1 | 450-600 m |
80--25% |
|
Manual |
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-10-26
|
| Data |
 Product Sheet english
Product Sheet english HC
Press release english
User Manual english (3.28 MB)
|
Barco Website
