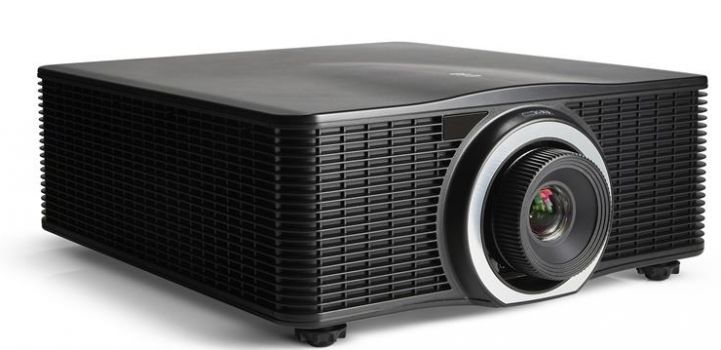

Designed for the Stationary sector, the G62-W9 model from Barco features 8000 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 6000:1. With its laser unit, the projector offers a specified light lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. The projector is offered by the manufacturer in both white and black housing variants. The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projector Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 8000 ANSI lumens allows for an image width of up to 909 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 606 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P and 4K as well as 3D are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Since entering the market in 2022, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.
Display Type
1 x 0,67" DLP WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Phosphor
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3556 Lux
Contrast:
6000:1
Candela pro m²:
1131 cd/m²
Foot-Lamberts:
330 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
2x HDMI(2.0 with Security Screw) in
1x DVI-D in
1x HDBaseT
1x 3D Sync In
1x 3G-SDI
1x Mini Jack Audio in (wired Remote)
1x RS232C Din 9 pin in
1x RJ45 in
Real Full HD 3D
Barco Website
Product Sheet english
