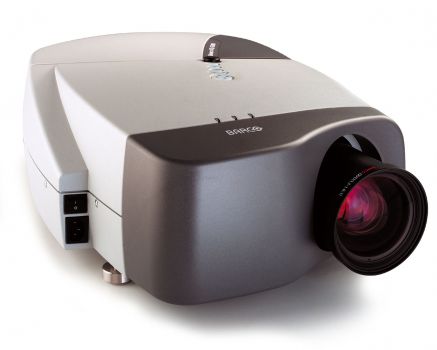

As a projector for the Stationary sector, the Barco IQ Pro G400 is equipped with 4200 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 400:1. The manufacturer lists the lamp life at 1000 hours. The specifications indicate lens shift optics, allowing the image to be physically shifted without introducing digital image artifacts. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Regarding projection size, the value of 4200 ANSI lumens allows for an image width of up to 564 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 376 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers, audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2002, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 1,3" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
4200
Screen
1400 Lux (200 cm Screen width)
Contrast
400:1 full on/off
400:1 full on/off
Black Level
10,5000 min. Lumen
3,526 min. Lumen
Lens shift
Vert.: +60% --15% motorisch
Lens shift
45%
68cm
+
Projector 52 cm under screen top edge
Resolution
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43, 1080i, 720p
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1400 Lux
Contrast:
400:1
Candela pro m²:
445 cd/m²
Foot-Lamberts:
130 fL
90 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
nein
Connections
5 x BNC RGBHV in
Composite Video,
S-Video,
YUV in,
1x VGA (D15-Buchse)
1x DVI (Digital Visual Interface)
1x D9-Buchse für RS232C ein/aus
PCMCIA in
4 x USB in
RJ45 in
Mikrofon in
Ceiling Mounting
Yes, is possible.
Power
620W
Size WxHxD
415 x 195 x 590 mm (16,3"x7,7"x23,2") 47,75 L/dm³
Operating Noise
38dB
Shift: 90 cm
Shift: -23 cm
Weight
12,50 kg / 27,56 lbs.
Keystone
-
Illumination
95%
Frequenz
H-sync: 15-110 kHz V-sync: 25-150 Hz Range max.: 160 MHz
Lens shift Funktion motorisch Freeze User logo Gamma correction Picture-in-Picture Password protection Remote control with mouse control Remote control with backlight Optional Wi-Fi network compatible. Lan network compatible. Singel Lamp mode smooth picture transition 4 x digital zoom, Pentium III with 1.2 GHz, 256 MB RAM, 10 GB hard disk
Lens shift Funktion motorisch
