Panasonic PT-MZ880 /E/U/J/L


Panasonic PT-MZ880J | Panasonic PT-MZ880E | Panasonic PT-MZ880U | Panasonic PT-MZ880JL | Panasonic PT-MZ880EL | Panasonic PT-MZ880UL | Panasonic PT-MZ880LB | Panasonic PT-MZ880WU
Image Panasonic PT-MZ880 /E/U/J/L
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Panasonic PT-MZ880 device delivers 8000 ANSI lumens, a resolution of WUXGA 1920 x 1200 and a contrast of 3000000:1 as a projector. The laser technology ensures a specified light source lifespan of up to 20000 hours – calculating to 13.7 years at four hours of use per day.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Distance Calculator.
A look at the light output reveals: The 8000 ANSI lumens are sufficient to illuminate an image width of up to 909 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 606 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P, and also offers the technical capability for 360° projection. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2021 and is no longer part of Panasonic's current product range. However, it remains frequently searched within our database.
Display Type       3 x 0,76" LCD TFT Panel
      WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
8000
Screen
3556 Lux (200 cm Screen width)
Contrast 3000000:1 3000000:1
Black Level 0,0027 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-67% Hori.: +/-35%
 Lens shift
67%  75cm
67%  75cm
35%  70cm
35%  70cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i,1080p, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Article Nr.: ET-RFM100
Order Accessories
85,44 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
322 - 552 cm
Lux: 3556 Lux
Contrast: 3000000:1
Candela pro m²: 1131 cd/m²
Foot-Lamberts: 330 fL
75 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,65
Objective
Throw Ratio optional
Audio 10W Mono

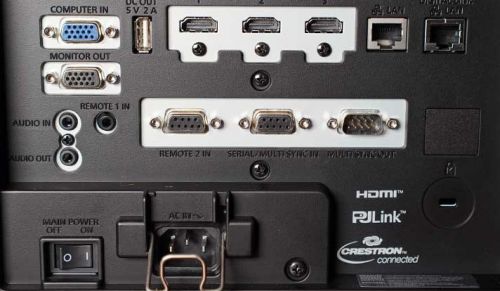

Connections 3 x HDMI in
D-sub 15pin in und out
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in und out
2 x RJ45 in
Ceiling Mounting Yes, is possible.
Power 520W
Size WxHxD 560 x 205 x 443 mm (22"x8,1"x17,4") 50,86 L/dm³
Operating Noise 35 / 28 dB in Eco Mode
Key: 186 cm
Shift: 75 cm
Key: 150 cm
Shift: 70 cm
Key: 150 cm
Shift: 70 cm
Key: 186 cm
Shift: 75 cm

Weight 18,60 kg / 39,68 lbs.
Keystone Vert.: +/-30°
Hori.: +/-25°
Illumination 90%
Frequenz H-sync: 15-91 kHz
V-sync: 24-100 Hz
Range max.: 162 MHz
Foot-Lamberts 330 fL / max. 909 cm screen width
Candela m² 1131 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
24/7 continuous operation capable
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
DICOM Simulation
Model PT-MZ770LB is with black case.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Panasonic PT-MZ880 /E/U/J/L compared to others not current "Stationary" projectors.
Ansi-Lumen:
80 Weight:
93
Contrast:
60 dB:
95
Black level:
100 Power cons.:
94
Picture Total Points:80 Projector Total Points:94
Popularity Top 100
39 popularity points 36 popularity points 34 popularity points 3 popularity points 32 popularity points 11 popularity points
Points:
11
Ranking: 29 (From: 2536)
Optional accessories
remote control OriginalN2QAYA00022844,10 €
air filter OriginalET-RFM100 / ET-RFM20085,44 €
ceiling bracket OriginalET-PKD120SEOL €
ceiling bracket OriginalET-PKD120HEOL €
object lens OriginalET-ELW22 / LNS-W222.172,31 €
object lens OriginalET-ELW21 / LNS-W211.247,54 €
object lens OriginalET-ELW20 / LNS-W201.639,77 €
object lens OriginalET-ELU208.058,79 €
object lens OriginalET-ELT23 / LNS-T231.574,75 €
object lens OriginalET-ELT22 / LNS-T221.574,75 €
object lens OriginalET-ELS20 / LNS-S20727,27 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
ET-ELT23 4.44-7.12:1 888-1424 m +/-67% +/-35% Powered
ET-ELT22 2.72-4.48:1 544-896 m +/-67% +/-35% Powered
ET-ELS20 1.61-2.76:1 322-552 m +/-67% +/-35% Powered
ET-ELW20 1.21-1.66:1 242-332 m +/-67% +/-35% Powered
ET-ELW22 0.79-0.98:1 158-196 m +/-60% +/-30%
ET-ELU20 0.33-0.35:1 66-70 m +/-50% +/-24% Powered
ET-ELW21 0.8:1 160 m 0.0% Fix No Zoom
Status 2021 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Panasonic Website
Product Sheet english
Product Sheet english HC
User Manual english (34.29 MB)

Projektor Panasonic PT-MZ880 /E/U/J/L
