Brief Introduction
Beta 2.5 |

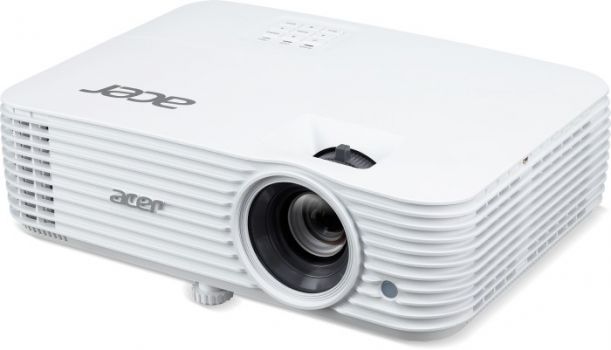

A brief introduction to the H6815BD: The Acer home cinema 3D DLP projector offers 4000 Ansi lumens, a contrast of 10000:1 and a UHD (4K2K) 3840 x 2160 resolution. The lamp in the projector is specified with a lamp life of 10000 hours, which is over 13.7 years with a daily viewing time of 2 hours. The horizontal and vertical keystone correction allows the projector to be positioned very freely. 4000 Ansi lumens ensure that a picture width of 643 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. Furthermore, the projector can play 1080P and 4K as well as 3D without any problems, and therefore all currently available Blu-ray formats can be recognized by the projector.
|
| Display Type |
1 x 0,47" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 / 3200 im Eco Mode |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
0,4000 min. Lumen |
0,178 min. Lumen |
| Offset |
60% show
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
240W Philips Lamp
Article Nr.: MC.JTA11.001
|
|
| Light Life |
5000 h. / 10000 h. in Eco Mode |
| Operating Costs |
|
|
300 - 330 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2-2,05 f=15,85-17,44 mm |
| Throw Ratio |
1,5-1,65:1 show |
| Audio |
1 x 3W Mono |
| Connections |
2 x HDMI 2.0 in
Mini Jack Audio out
USB
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
245W / 170W Eco Mode |
| Size WxHxD |
322 x 93 x 225 mm (12,7"x3,7"x8,9") 6,74 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
Key: 320 cm |
Key: 252 cm |
| Key: 252 cm |
| |
|
|
| Weight |
2,88 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-291 kHz
V-sync: 24-240 Hz
|
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer H6815BD compared to others current "Homecinema" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
52 |
| Black level: |
|
88 |
Power cons.: |
|
80 |
| Picture Total Points: | 42 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
54 |
| Ranking: |
7 (From: 110) |
|
|
|
|
|
| Status |
2021 Current model // Last update of the data: 2024-11-15
