Brief Introduction
Beta 2.5 |
The Viewsonic Pro8300 standard portable DLP projector has 3000 Ansi lumens, a contrast of 4000:1 and an HDTV 1920 x 1080 resolution. As the Pro8300 is equipped with a microphone jack and 10W speakers, no additional audio system is required for presentations or training courses. 556 cm image width, the projector will be able to illuminate well. However, if room lighting is available, the image width should ideally not exceed 371 cm. The model is also Full HD 1080P compatible. This model is no longer offered by Viewsonic.
|
| Display Type |
1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,7500 min. Lumen |
0,333 min. Lumen |
| Offset |
65% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

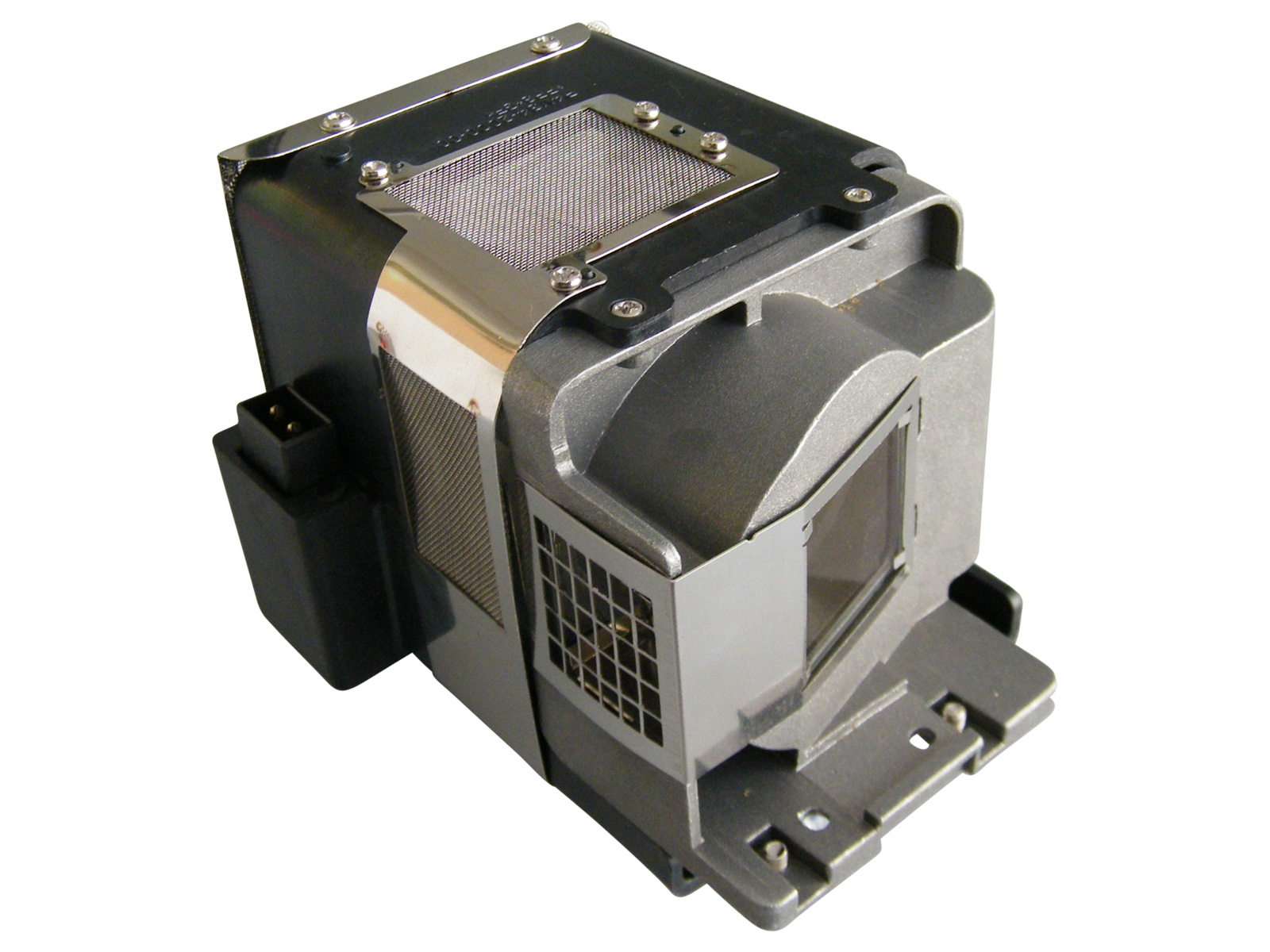

230W Lamp
Article Nr.: RLC-061
|
|
| Light Life |
2500 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
274 - 410 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
- |
| Throw Ratio |
1,37-2,05:1 show |
| Audio |
2 x 10W |

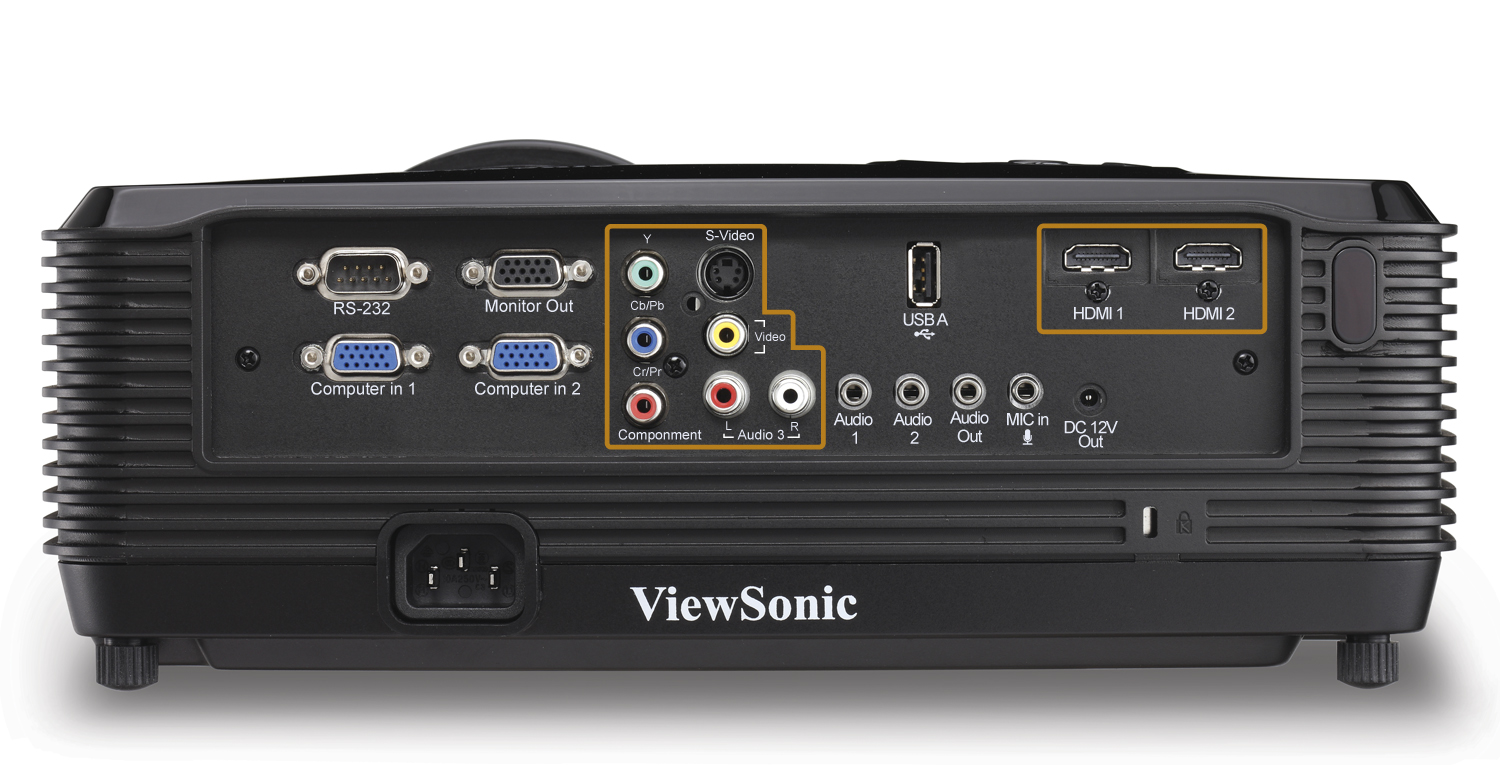

| Connections |
2 x HDMI 1.3 in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in
RS232C
USB Typ B
12V Trigger out
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310W |
| Size WxHxD |
333 x 110 x 163 mm (13,1"x4,3"x6,4") 5,97 L/dm³
|
| Operating Noise |
33 / 29 dB in Eco Mode |
|
| Weight |
3,86 kg / 8,51 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
90% |
| Frequenz |
H-sync: 31-100 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
124 fL
/ max. 556 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Password protection
Remote control with laser pointer
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Viewsonic Pro8300 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 45 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2968 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
