The The Premiere 7 LPU7D model is a DLP projector from Samsung, intended for Short Distance applications, offering 2800 ANSI lumens, a contrast of 1000:1 at 4KESHIFT 2716 x 1528. The laser technology ensures a specified light source lifespan of up to 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 50 cm. To allow for cross-manufacturer brightness comparisons, the stated ANSI lumen value is based on a conversion of the ISO lumen values. Regarding projection size, the value of 2800 ANSI lumens allows for an image width of up to 538 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 359 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports DLNA screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x DLP Chip 4KESH 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2800 / 2500 ISO Lumen
Screen
1244 Lux (200 cm Screen width)
Contrast
1000:1 full on/off
1000:1 full on/off
Black Level
2,8000 min. Lumen
1,247 min. Lumen
Offset
-
Resolution
4KESHIFT 2716 x 1528 4.150.048 Pixel
(4K2K) 3840 x 2160 mit E-Shift
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p Media player formats: Digitaler Fernsehempfang (DVB)
DVB-C/S2/T2 HD
HbbTV
HbbTV 2.0.1
TVkey-Unterstützung
Ja
Disc Recognition
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
Application
Short Distance | Medium screen width or rooms with little light, max. 100 lumens.
Light Source
Tripple Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
50 cm (no Zoom)
Lux:
1244 Lux
Contrast:
1000:1
Candela pro m²:
397 cd/m²
Foot-Lamberts:
116 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,25:1
Audio
30W Dolby Atmos + 2,2 Kanal-Sound+ SubWoofer

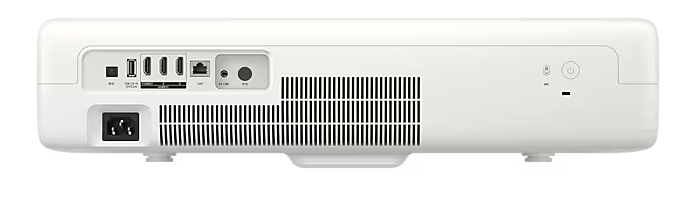

Connections
3 x HDMI (eARC) in
Antenne
USB-A in
RJ45 in
RS-232C in
Bluetooth 5.2
Full HD 1080P compatible Direkt Power Off Integrated Mediaplayer User logo Eco Mode Kensington Slot High Dynamic Range (HDR) Password protection Control via web browser Wi-Fi network compatible. Lan network compatible. Short-throw projector Tizen™ OS Dolby® Digital Plus HLG (Hybrid Log Gamma) Samsung Wake on LAN Multi View (up to 2 videos) Tap View Samsung TV Plus Voice Assistant (Bixby) Embeded POP Digital Clean View Game Mode
Full HD 1080P compatible
