Brief Introduction
Beta 2.5 |

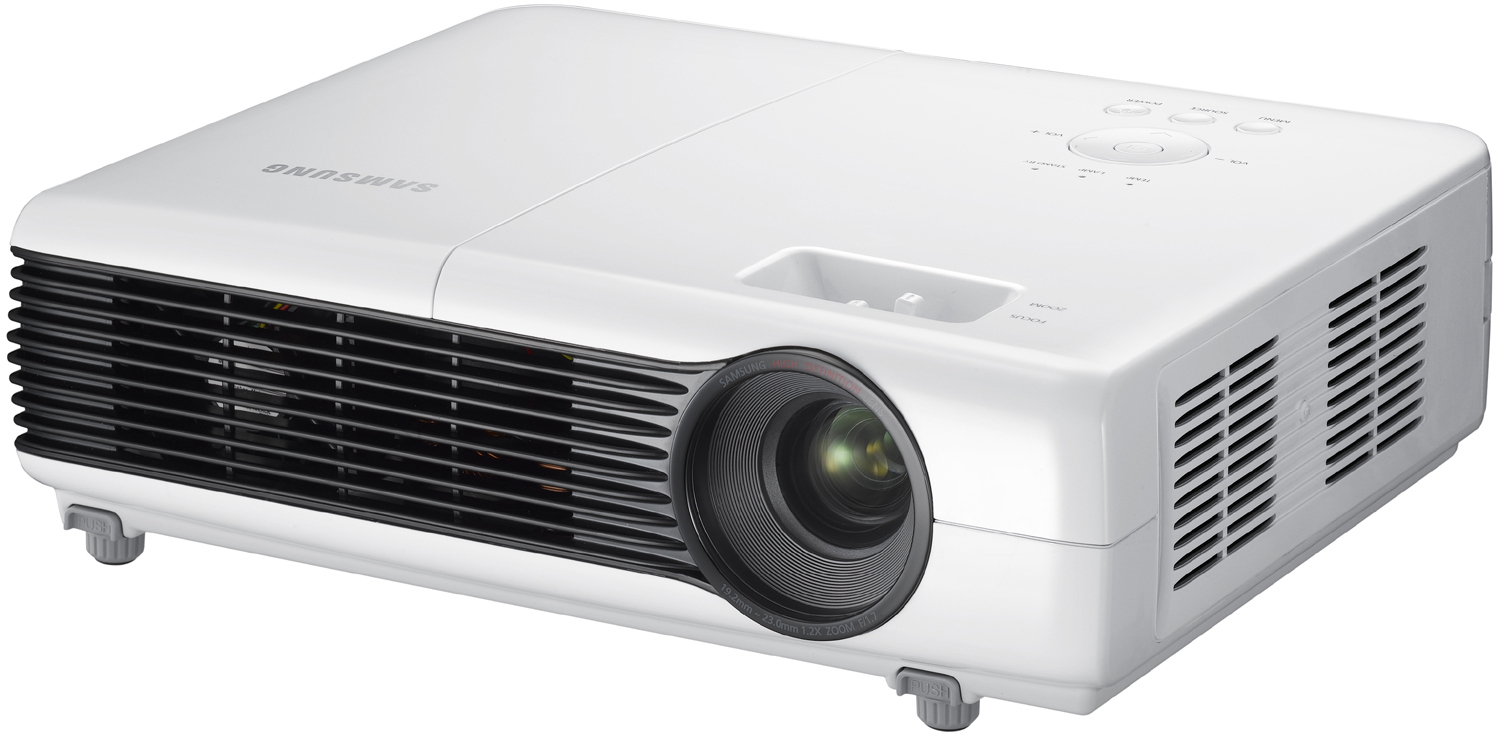

The Samsung model SP M200W is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 2000:1. The projector can illuminate a picture width of 454 cm well. However, if room light is available, the picture width should ideally not exceed 303 cm. The model built in 2010 is no longer offered by Samsung.
|
| Display Type |
3 x LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
800 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,401 min. Lumen |
| Offset |
85,7% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
180 / 144W im Eco Mode Lamp
Article Nr.: BP47-00057A / DPL3311U / EN
|
|
| Light Life |
3000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
296 - 356 cm
|
 |
|
Lux: |
800 Lux |
|
Room light max.: |
160 Lux |
|
Candela pro m²: |
254 cd/m² |
|
Foot-Lamberts: |
74 fL |
|
 |
| 107 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
- |
| Throw Ratio |
1,48-1,78:1 show |
| Audio |
7W |

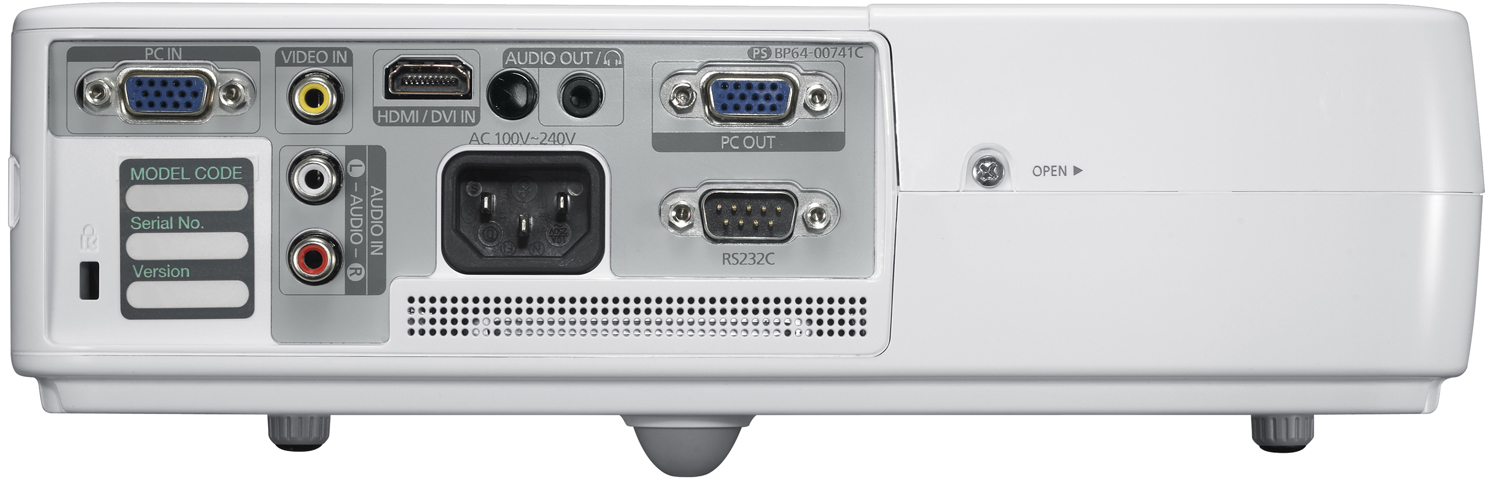

| Connections |
HDMI
D-sub 15 pin in und out
Cinch Video in
RS232C
Mini Jack Audio in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
279 x 79 x 229 mm (11"x3,1"x9") 5,05 L/dm³
|
| Operating Noise |
35 / 31 dB in Eco Mode |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 30-80 kHz
V-sync: 56-75 Hz
|
| Foot-Lamberts |
74 fL
/ max. 454 cm screen width |
| Candela m² |
254 cd/m² |
| Features |
 Direkt Power Off
Blank (Black screen button)
Eco Mode
Kensington Slot
Gamma correction
Password protection
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Samsung SP M200W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
36 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 40 |
Projector Total Points: | 74 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5879 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
User Manual english (2.38 MB)

|
Samsung Website
