Samsung SP M200
Image Samsung SP M200
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!

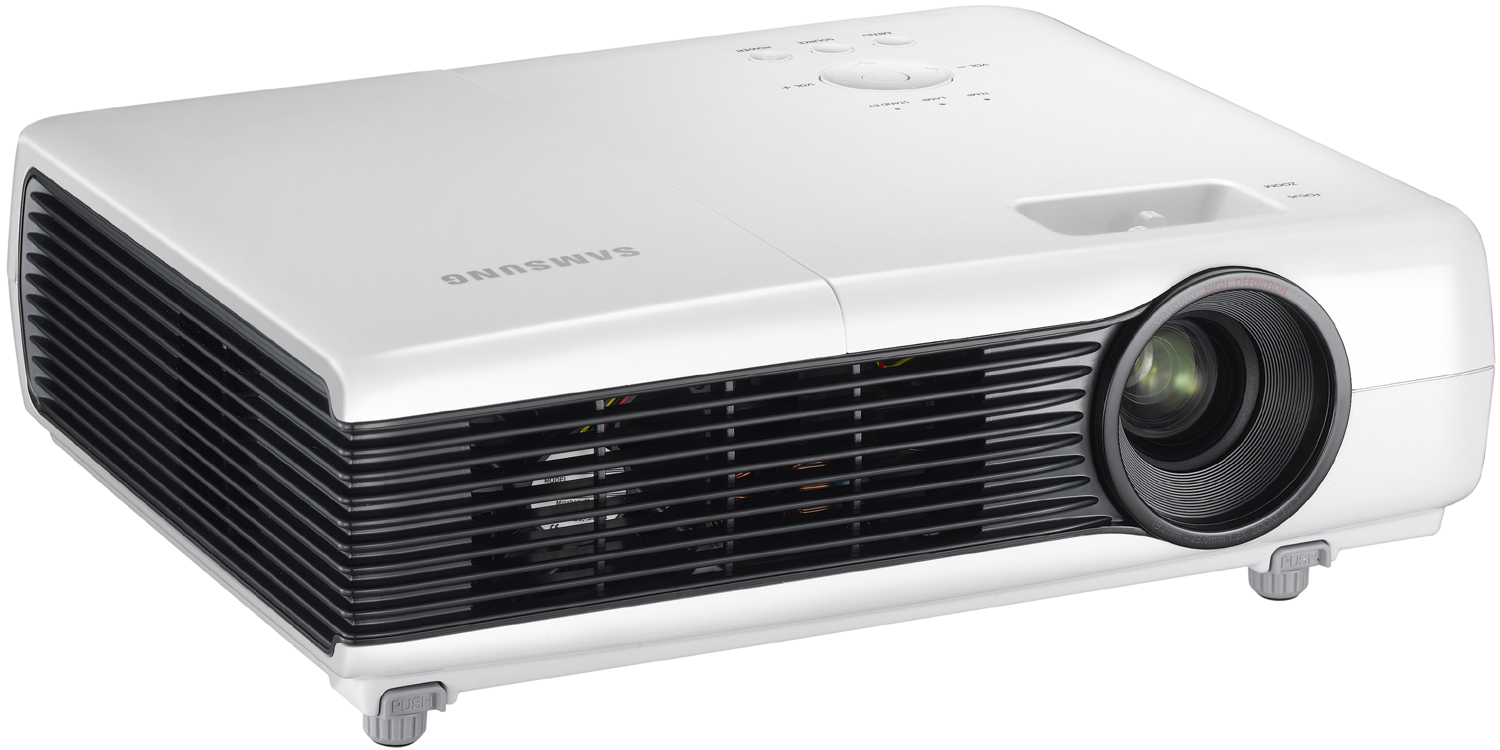

Model Overview This projector from Samsung utilizes LCD technology, achieving 2000 ANSI lumens and a contrast of 500:1 at a resolution of XGA 1024 x 768. The runtime of the lamp in this model is estimated at 3000 hours before a replacement is necessary.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm.
This model dates back to 2010 and is no longer part of Samsung's current product range.
Display Type       3 x 0,63" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2000
Screen
 667 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 4,0000 min. Lumen 1,342 min. Lumen
Offset 71,50% 32 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 180W UHP Lamp
Light Life 3000 h. 5000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
296 - 356 cm
Lux: 667 Lux
Contrast: 500:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL
107 cm



Screen width:cm
          Room:
•

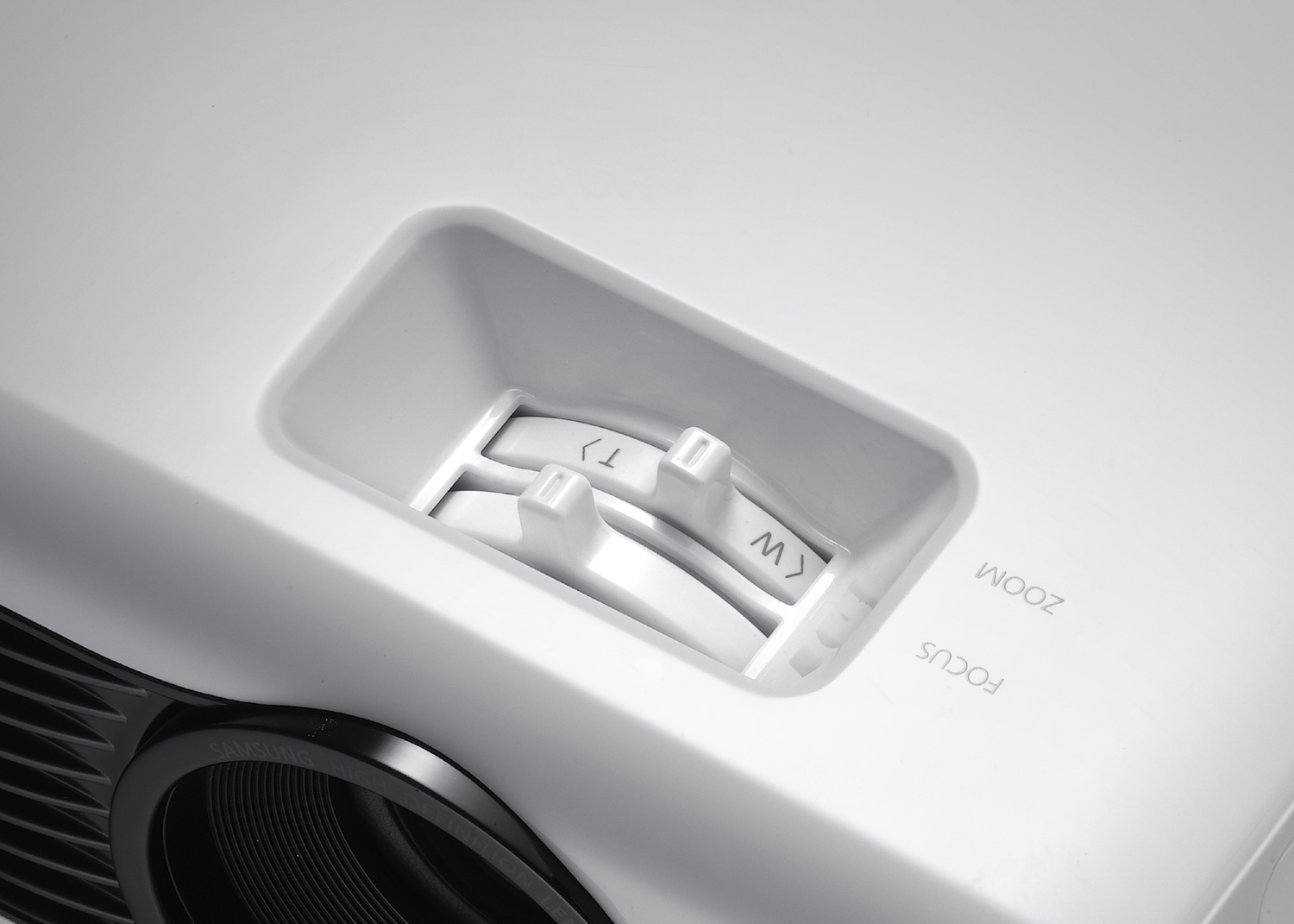

Focus Manual
Zoom Manual 1,2

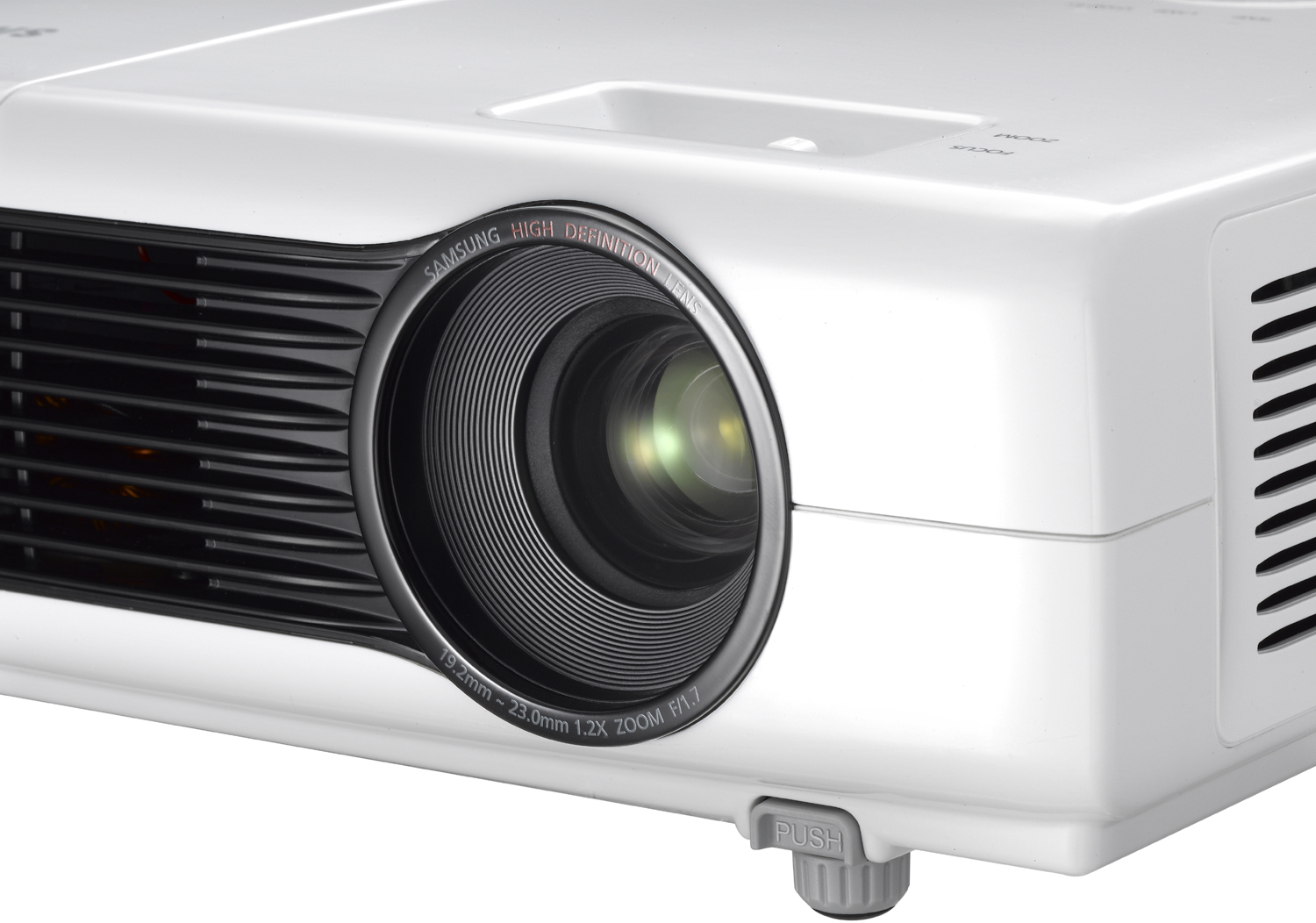

Objective F=1,7-1,87 f=19,2-23 mm
Throw Ratio 1,48-1,78:1 show
Audio 7W Mono
Connections HDMI in
D-sub 15 pin in
S-Video in
Cinch video in
Stereo Cinch in
RS232C
Ceiling Mounting Yes, is possible.
Power 240W
Size WxHxD 279 x 79 x 229 mm (11"x3,1"x9") 5,05 L/dm³
Operating Noise 36 / 31 dB in Eco Mode
Key: 215 cm
Key: 1 cm
Weight 2,50 kg / 5,51 lbs.
Keystone Vert.: +/-20°
Illumination -
Frequenz H-sync: 30-80 kHz
V-sync: 56-75 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Direkt Power Off
Blank (Black screen button)
Eco Mode
Kensington Slot
Gamma correction
Password protection
Overscan adjustable
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Samsung SP M200 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
88
Contrast:
1 dB:
33
Black level:
85 Power cons.:
98
Picture Total Points:36 Projector Total Points:73
Popularity Top 100
4 popularity points 12 popularity points 8 popularity points 2 popularity points 2 popularity points 7 popularity points
Points:
7
Ranking: 979 (From: 7737)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2010 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Samsung Website
Product Sheet english HC
Product Sheet französisch
User Manual english (1.92 MB)
