Proxima PRO AV 9500
PROXIMA DP9500

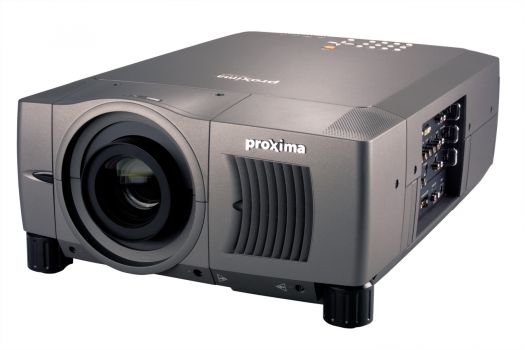

Image Proxima PRO AV 9500
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The basic data of the Proxima PRO AV 9500 includes 5200 ANSI lumens, a resolution of XGA 1024 x 768 as well as a contrast of 700:1. In operating mode, the installed projector lamp offers a lifespan of 1000 hours.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator.
Looking at practical performance, up to 628 cm can be illuminated with 5200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 419 cm.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       3 x 1,8" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 5200 / 2600 im singel lamp Mode
Screen
 1733 Lux (200 cm Screen width)
Contrast 700:1 full on/off 700:1 full on/off
Black Level 7,4286 min. Lumen 2,486 min. Lumen
Lens shift Vert.: +/-50%
 Lens shift
 		50%  75cm
50%  75cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV(1080i, 1035i, 720p, 480p)
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).

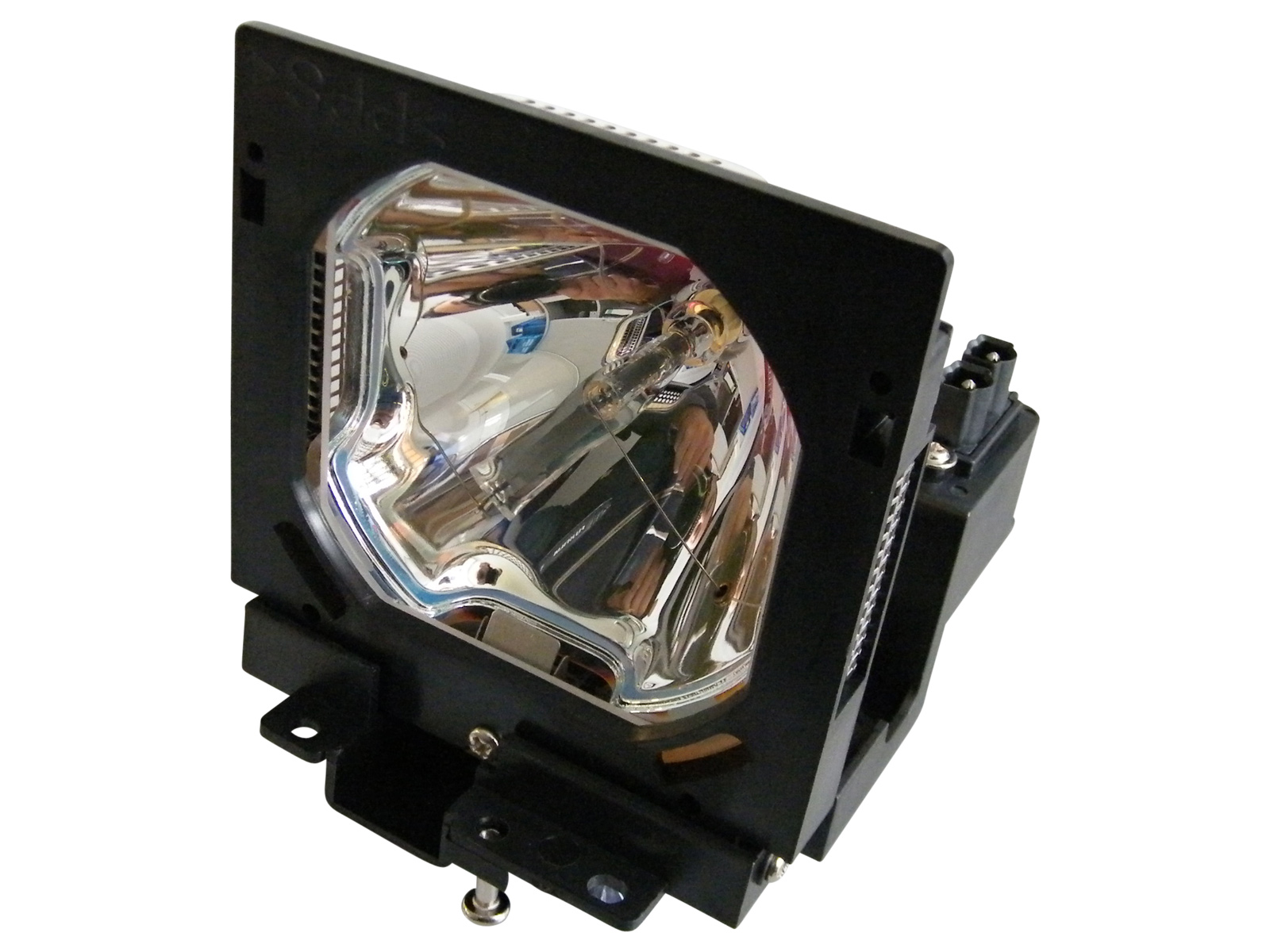

Light Source 2 x 200W UHP Lamp
Article Nr.: SP-LAMP-004
Order Lamp
120,17 120,17 €
Light Life 1000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
414 - 534 cm
Lux: 1733 Lux
Contrast: 700:1
Candela pro m²: 552 cd/m²
Foot-Lamberts: 161 fL
75 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 1,29
Objective F=2,0-2,3 f=75,7-97,5 mm
Throw Ratio 2,07-2,67:1 show
Audio 2 x 3W
Connections Input 1 (Modular):
DVI-I
Audio in
Maus controlInput 2 (Modular): 5xBNC (RGBHV, RGBS, RGB,YPbPr, YCbCr), Audio in, Maus control;

Input 3 (Modular):
2xBNC (Composite,
Y, C video),
S-video,Audio in
Ceiling Mounting Yes, is possible.
Power 900W
Size WxHxD 439 x 227 x 604 mm (17,3"x8,9"x23,8") 60,19 L/dm³
Operating Noise 45dB
Key: 239 cm
Shift: 75 cm
Key: 239 cm
Shift: 75 cm
Weight 20,50 kg / 45,19 lbs.
Keystone Vert.: +/-30°
Illumination 85%
Frequenz H-sync: 15-120 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz
Foot-Lamberts 161 fL / max. 628 cm screen width
Candela m² 552 cd/m²
Features Lens shift Funktion
Freeze
Blank (Black screen button)
Gamma correction
Remote control with laser pointer und mouse control
Crestron®-Software compatible.
Digital Zoom
Faroudja De-interlacer
Screen Mirroring -
In Comparison
The Proxima PRO AV 9500 compared to others not current "Stationary" projectors.
Ansi-Lumen:
51 Weight:
92
Contrast:
1 dB:
92
Black level:
78 Power cons.:
88
Picture Total Points:43 Projector Total Points:91
Popularity Top 100
17 popularity points 20 popularity points 19 popularity points 1 popularity points 8 popularity points 5 popularity points
Points:
5
Ranking: 567 (From: 2536)
Optional accessories
bulb only Philips NLMP3164147,95 €
single lamp ruby Ruby-LMP3164120,17 €
single lamp OriginalSP-LAMP-004EOL €
Universal Remote Fernb-uni-V322,31 €
remote control Original645 047 7867 / CXJT96,09 €
air filter C left Original910 292 3187EOL €
air filter A bottom Original910 292 3163EOL €
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
LENS-011 4.6-6:1 920-1200 m +/-40% Powered
LENS-004 3.4-4.5:1 680-900 m +/-40% Powered
LENS-018 2.6-3.5:1 520-700 m +/-50% Powered
LENS-003 1.8-2.9:1 360-580 m +/-50% Powered
LENS-005 2.07-2.67:1 414-534 m +/-50% Powered
LENS-001 1.2:1 240 m +/-40% No Zoom
LENS-002 6.9:1 1380 m +/-40% No Zoom
LENS-019 0.8:1 160 m +/-0.0% No Zoom
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet
Product Sheet english
Product Sheet english HC
Product Sheet RS232C
User Manual (0.97 MB)

Projektor Proxima PRO AV 9500
