The basic data of the Plus U2 813 includes 1300 ANSI lumens, a resolution of SVGA 800 x 600 as well as a contrast of 300:1. The runtime of the lamp in this model is estimated at 1000 hours before a replacement is necessary. Looking at practical performance, up to 314 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 209 cm. This model dates back to 2003 and is no longer part of Plus's current product range.
Display Type
0,7 DLP SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1300
Screen
433 Lux (200 cm Screen width)
Contrast
300:1 nach Ansi
300:1 nach Ansi
Black Level
4,3333 min. Lumen
1,458 min. Lumen
Offset
-
Resolution
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source

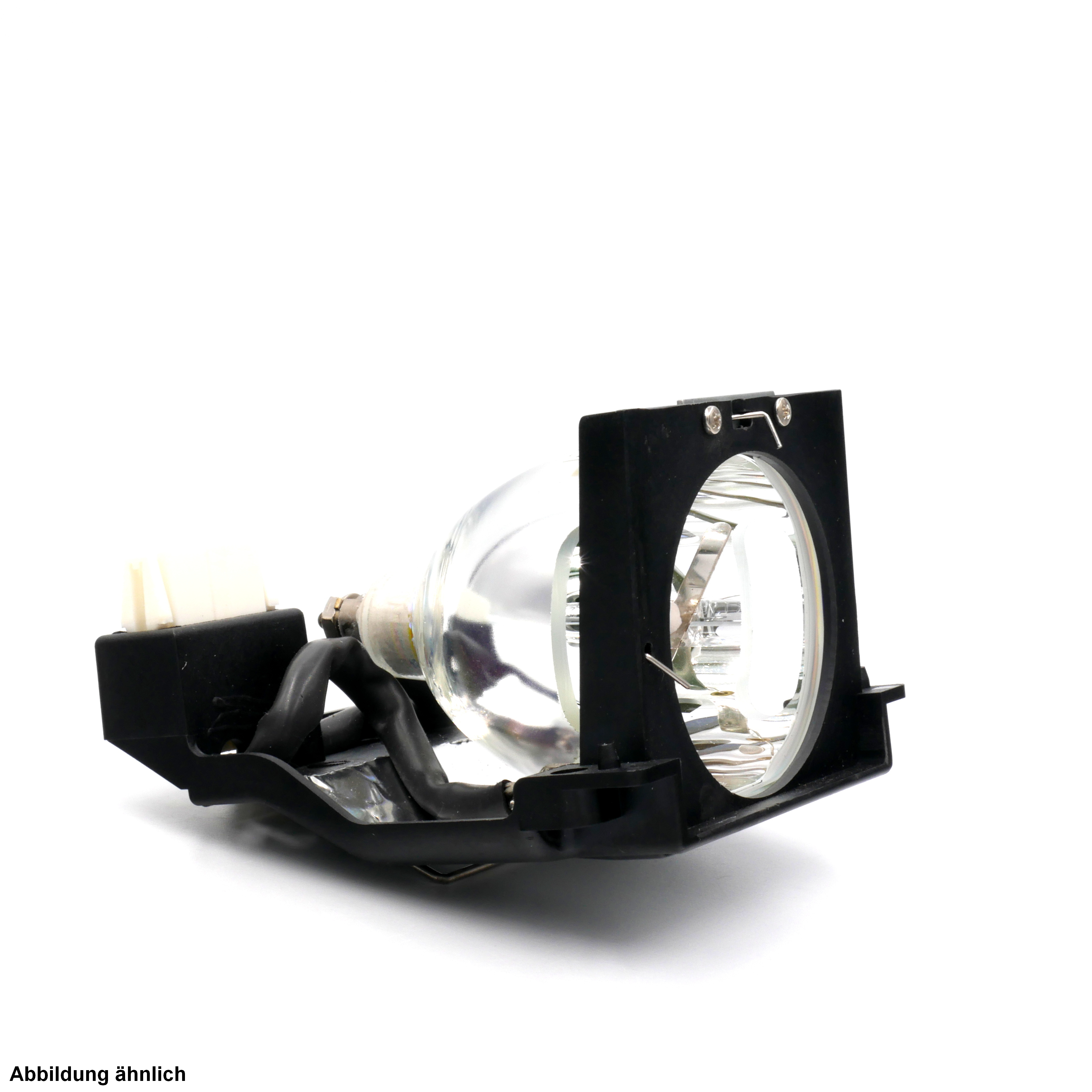

150W High Perfürmance Compact Lamp Article Nr.: 28-610
Freeze
Product Sheet english
