Plus U2 811

Image Plus U2 811
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector from Plus utilizes DLP technology, achieving 1100 ANSI lumens and a contrast of 300:1 at a resolution of SVGA 800 x 600. According to Plus, the lamp has a durability of 1000 hours.
Looking at practical performance, up to 289 cm can be illuminated with 1100 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 193 cm.
This is a discontinued model that is no longer officially distributed by Plus. For your information: Compatible lamps for this device are no longer available in stores.
Display Type       DLP Chip
      SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1100
Screen
367 Lux (200 cm Screen width)
Contrast 300:1 nach Ansi (800:1) 300:1 nach Ansi (800:1)
Black Level 3,6667 min. Lumen 1,236 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes NTSC, NTSC4.43/PAL, PAL-M, PAL-N, PAL60/SECAM, YCbCr(NTSC, PAL), YPbPr(480p, 720p, 1080i)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

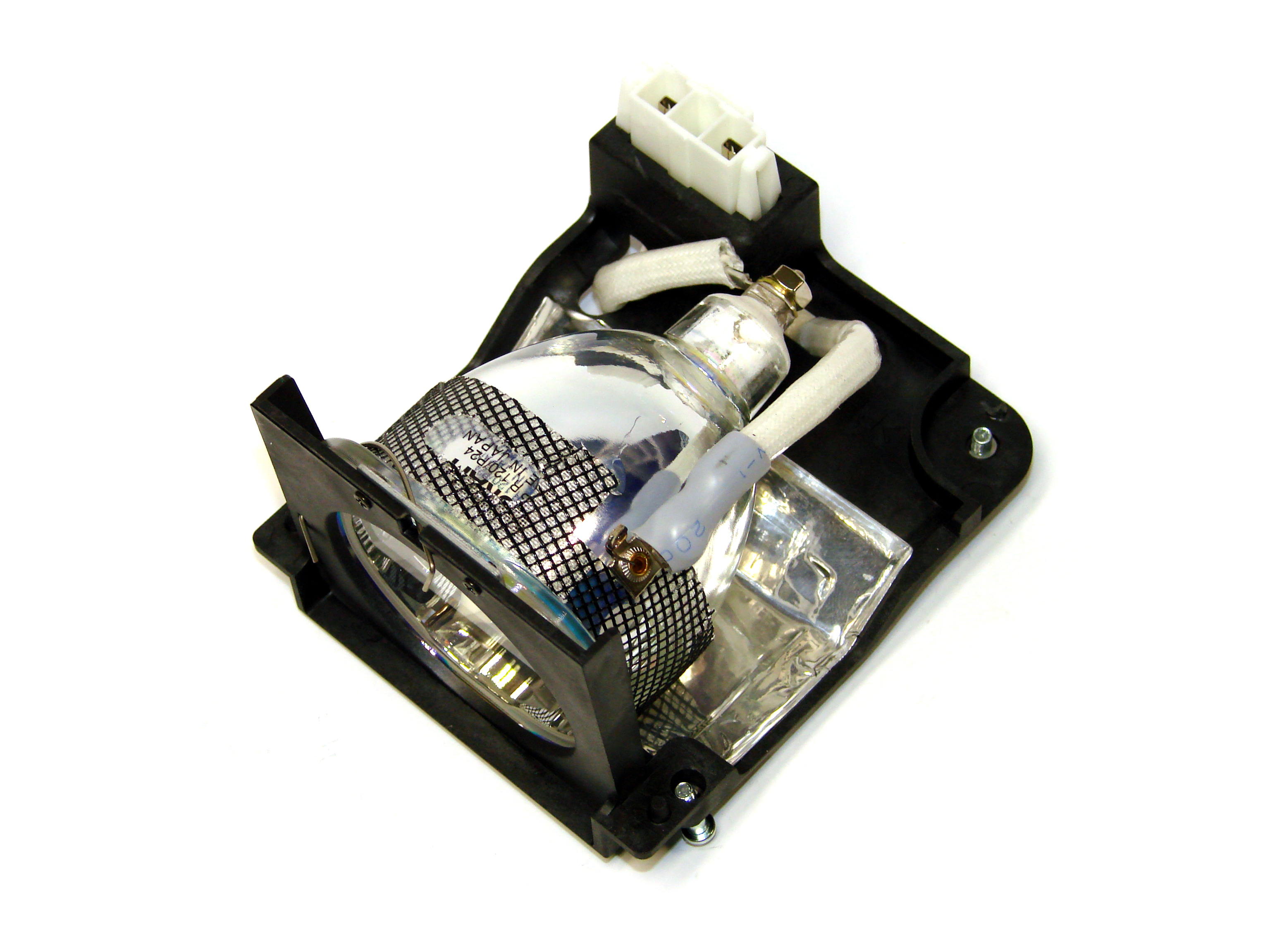

Light Source 150W High Perfürmance Compact Lamp
Article Nr.: 28-650 / PU21080L
Order Lamp
0,00 €
Light Life 1000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
Lux: 367 Lux
Contrast: 300:1
Candela pro m²: 116 cd/m²
Foot-Lamberts: 34 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,18
Objective F=3,0-3,3 f=28-33 mm
Throw Ratio -
Audio 1W Mono
Connections RGB: HD D-sub 15pin x 1
Audio (RGB): Stereo Mini Jack x 1
Composite Video: RCA x 1
S-Video: Mini DIN 4 pin x 1
Audio (Video): RCA x 2 (L,R)
Ceiling Mounting Yes, is possible.
Power 220W
Size WxHxD 235 x 58 x 297 mm (9,3"x2,3"x11,7") 4,05 L/dm³
Operating Noise -

Weight 2,50 kg / 5,51 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-85 kHz
V-sync: 50-85 Hz
Foot-Lamberts 34 fL / max. 289 cm screen width
Candela m² 116 cd/m²
Features Freeze
Remote control with laser pointer
Auto AdjustmentDigital Keystone Correction (15 degrees)Digital Zoom (x 4)Direct Mouse ControlMuteOn Screen Pointers
Screen Mirroring -
In Comparison
The Plus U2 811 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
11 Weight:
88
Contrast:
1 dB: 0
Black level:
86 Power cons.:
98
Picture Total Points:33 Projector Total Points:0
Popularity Top 100
0 popularity points 5 popularity points 3 popularity points 1 popularity points 0 popularity points 2 popularity points
Points:
2
Ranking: 6255 (From: 7737)
Optional accessories
bulb only Osram NLMP2947EOL €
lamp Original28-650 / PU21080LEOL €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status - Discontinued (EOL) // Last update of the data: 2026-08-18
Data
Product Sheet english HC
