The hardware properties of the ImagePro 9100WUSS manufactured by Dukane include 10000 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast value of 30000:1. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Distance Calculator. A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 1016 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 677 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2016 and is officially no longer distributed by Dukane.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4444 Lux
Contrast:
30000:1
Candela pro m²:
1415 cd/m²
Foot-Lamberts:
413 fL
68 cm
•
Focus
Powered
Zoom
Powered 1,5
Objective
Throw Ratio
optional
Audio
-

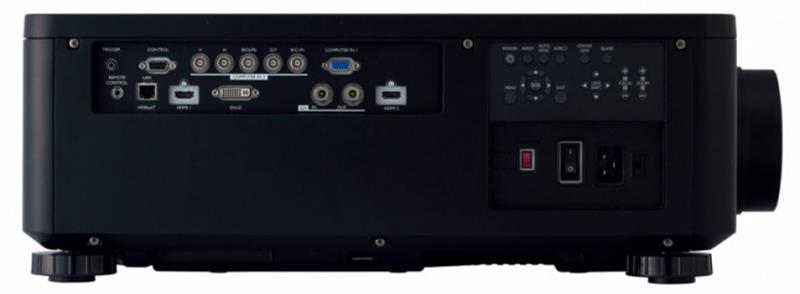

Connections
2 x HDMI in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
3G-SDI in und out
12V Trigge rout
Ceiling Mounting
Yes, is possible.
Power
1340 / 1240W in Eco Mode
Size WxHxD
500,4 x 215,9 x 576,6 mm (19,7"x8,5"x22,7") 61,92 L/dm³
Operating Noise
-
Shift: 68 cm
Shift: 40 cm
Shift: 40 cm
Shift: 25 cm
Weight
27,99 kg / 61,71 lbs.
Keystone
Vert.: +/-60° Hori.: +/-40°
Illumination
-
Frequenz
H-sync: 15-106 kHz V-sync: 50-120 Hz Range max.: 150 MHz
Full HD 1080P compatible
