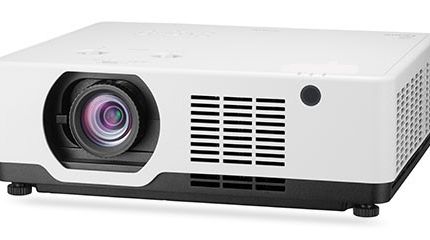

The basic data of the Dukane ImagePro 6652UL includes 5500 ANSI lumens, a resolution of WUXGA 1920 x 1200 as well as a contrast of 3000000:1. This is a laser projector with a light source designed to last for 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Projector Calculator. Looking at practical performance, up to 753 cm can be illuminated with 5500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 502 cm. For media input, video signals up to 1080P and 4K are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
3 x 0,64" LCD Panel WUXGA 16/9 Liquid Crystal Display
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
20000 h. / 30000 h. ECO bis 50% Helligkeit
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
2x HDMI w/ HDCP (v1.4b)
1x D-sub 15pin in und out
1x Mini Jack Audio in und out
1x USB Typ A
1x USB Typ B
1x RS232C Din 9 pin in
1x RJ45 in (100Base-TX/10Base-T)
Full HD 1080P compatible
