As a projector, the Boxlight N12BNW combines DLP technology with a resolution of WXGA 1280 x 800, and is additionally specified with 4000 ANSI lumens and a contrast of 10000:1. According to Boxlight, the lamp has a durability of 3000 hours. Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 54 cm is sufficient to generate an image width of 2 meters. Looking at practical performance, up to 643 cm can be illuminated with 4000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 429 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2016 and is no longer part of Boxlight's current product range.
Display Type
1 x DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
260W Lamp
Light Life
3000 h. 4000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
54 cm (no Zoom)
Lux:
1600 Lux
Contrast:
10000:1
Candela pro m²:
511 cd/m²
Foot-Lamberts:
149 fL
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,4
Throw Ratio
0,27:1
Audio
-

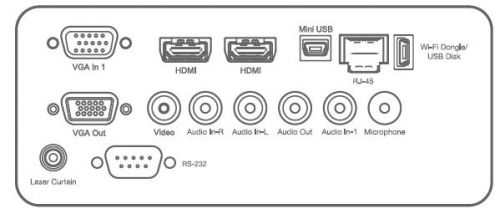

Connections
2 x HDMI 1.4a in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
mini USB in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
Eco Mode
