Brief Introduction
Beta 2.5 |

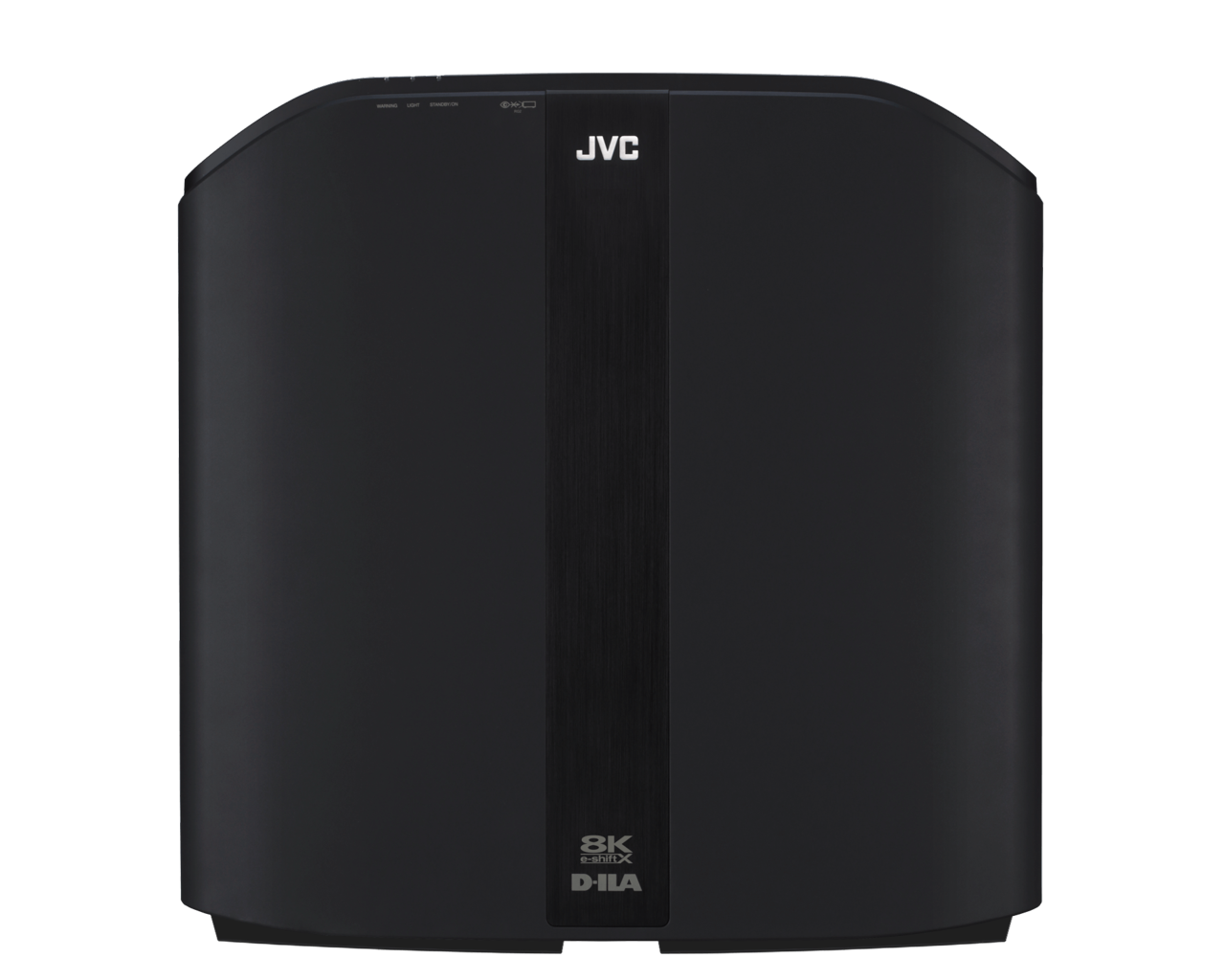

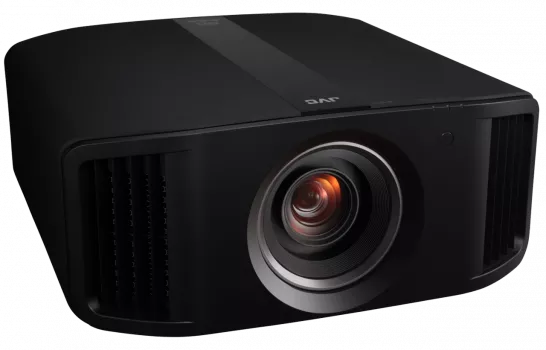

The DLA-NZ8 B/W 3D laser DILA projector from JVC has 2500 Ansi lumens, a contrast of 80000:1 and a UHD (4K+2K) 4096 x 2160 resolution. The manufacturer specifies a laser life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The projector also offers a lens shift function, which makes image adjustment childs play. 2500 Ansi lumens ensure that a picture width of 443 cm is also possible. However, if room light is available, the picture should be a maximum of 295 cm wide. Playback of 1080P and 4K as well as 3D is also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,69" D-ILA Chip
UHD 19/10 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1185 Lux (200 cm Screen width) |
| Contrast |
80000:1 full on/off |
80000:1 full on/off
|
| Black Level |
0,0313 min. Lumen |
0,015 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-43%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel / (8K) 8192 X 4320 mit E-Shift
8K4K 8192 x 4320 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
BLU-Escent Laser Diode
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
284 - 582 cm
|
 |
|
Lux: |
1185 Lux |
|
Room light max.: |
237 Lux |
|
Candela pro m²: |
377 cd/m² |
|
Foot-Lamberts: |
110 fL |
|
 |
| 80 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,01 |
| Objective |
- |
| Throw Ratio |
1,42-2,91:1 show |
| Audio |
Nein |

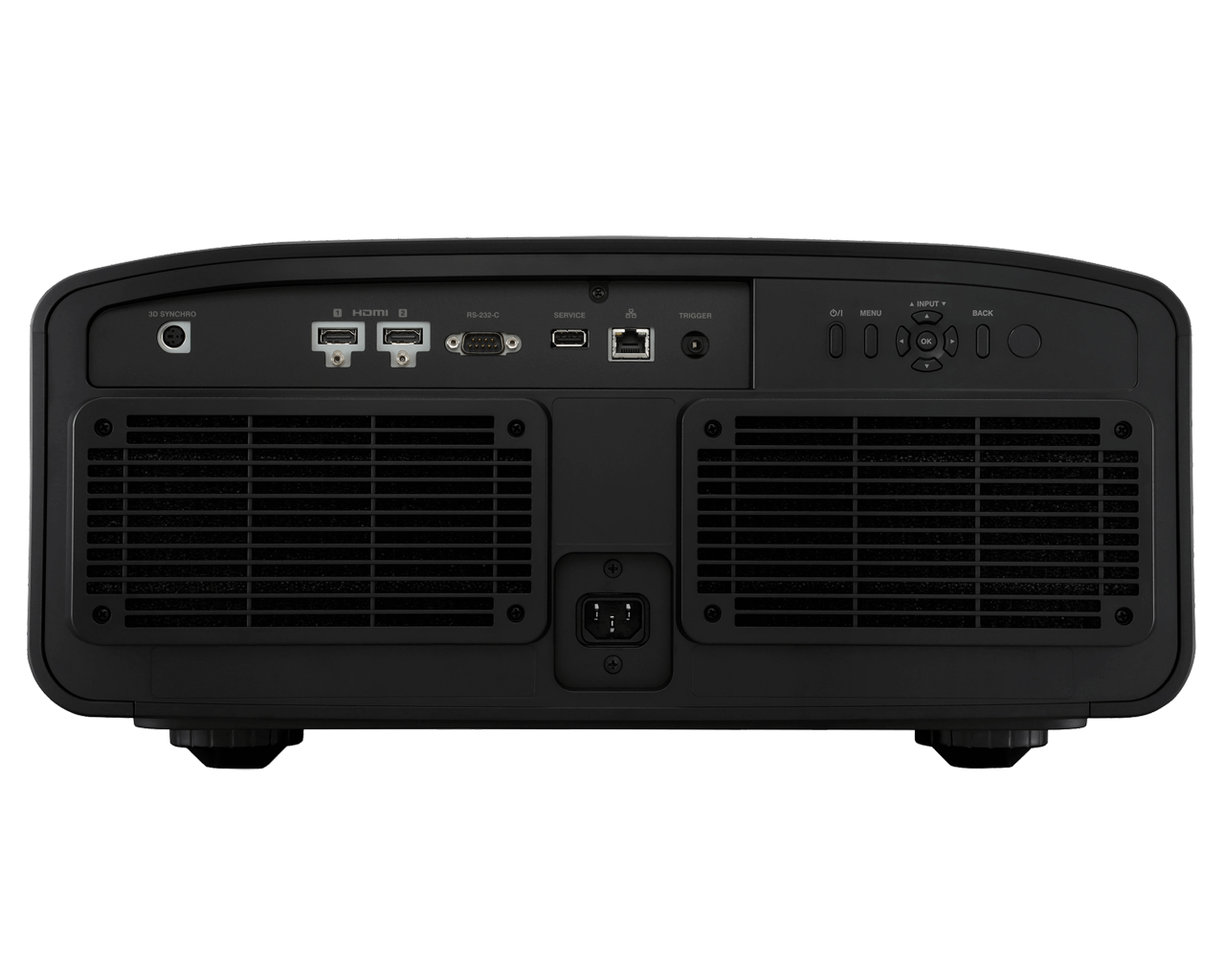

| Connections |
2 x HDMI mit HDCP 2.2 in
RS232C Din 9 pin in
12V Trigger out
USB Typ A
RJ45in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
440W |
| Size WxHxD |
500 x 234 x 505 mm (19,7"x9,2"x19,9") 59,09 L/dm³
|
| Operating Noise |
24 dB in Eco Mode |
Shift: 84 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
23,10 kg / 50,93 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
110 fL
/ max. 528 cm screen width |
| Candela m² |
377 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
High Dynamic Range (HDR)
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA-NZ8 B/W compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
16 |
Weight: |
|
35 |
| Contrast: |
|
2 |
dB: |
|
0 |
| Black level: |
|
92 |
Power cons.: |
|
37 |
| Picture Total Points: | 37 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
395 (From: 499) |
|
|
|
|
|
| Status |
2021 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2021-09-09 09:23:37
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (10.07 MB)

|
JVC Contact
