Brief Introduction
Beta 2.5 |
The DLA-25LTD 3D Laser DILA has 3000 Ansi-Lumen, a contrast of 150000:1 and a UHD (4K+2K) 4096 x 2160 resolution. The manufacturer specifies a laser service life of 20000 hours, which converts to over 13.7 years at 4 hours per day. The projector also offers a lens shift function, which makes image adjustment childs play. 3000 Ansi lumens ensure that a picture width of 28 cm is also possible. However, if room light is available, the picture should be a maximum of 19 cm wide. Playback of 1080P and 4K as well as 3D is also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,69" D-ILA Chip
UHD 19/10 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1422 Lux (200 cm Screen width) |
| Contrast |
150000:1 full on/off |
150000:1 full on/off
|
| Black Level |
0,0200 min. Lumen |
0,009 min. Lumen |
| Lens shift |
Vert.: +/-100% Hori.: +/-43%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel / (8K) 8192 X 4320 mit E-Shift
8K4K 8192 x 4320 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
BLU-Escent Laser Diode
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
270 - 550 cm
|
 |
|
Lux: |
1422 Lux |
|
Room light max.: |
284 Lux |
|
Candela pro m²: |
452 cd/m² |
|
Foot-Lamberts: |
132 fL |
|
 |
| 100 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,01 |
| Objective |
- |
| Throw Ratio |
1,35-2,75:1 show |
| Audio |
Nein |

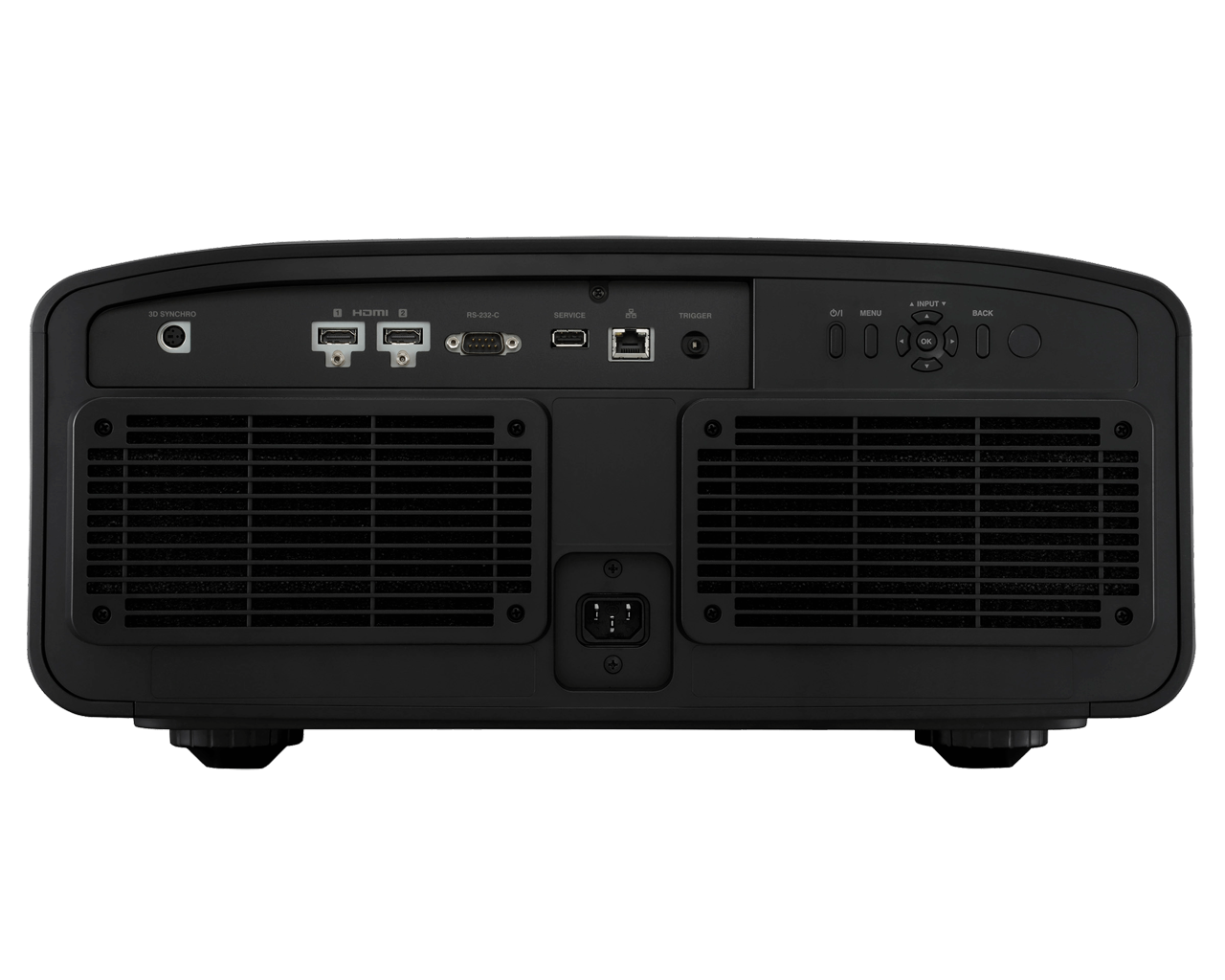

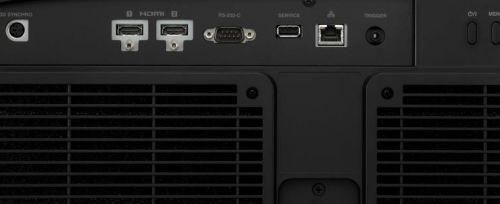

| Connections |
2 x HDMI mit HDCP 2.2 in
RS232C Din 9 pin in
12V Trigger out
USB Typ A
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
440W |
| Size WxHxD |
500 x 234 x 528 mm (19,7"x9,2"x20,8") 61,78 L/dm³
|
| Operating Noise |
24 dB in Eco Mode |
Shift: 105 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
30,70 kg / 66,14 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
132 fL
/ max. 352 cm screen width |
| Candela m² |
452 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
High Dynamic Range (HDR)
Lan network compatible.

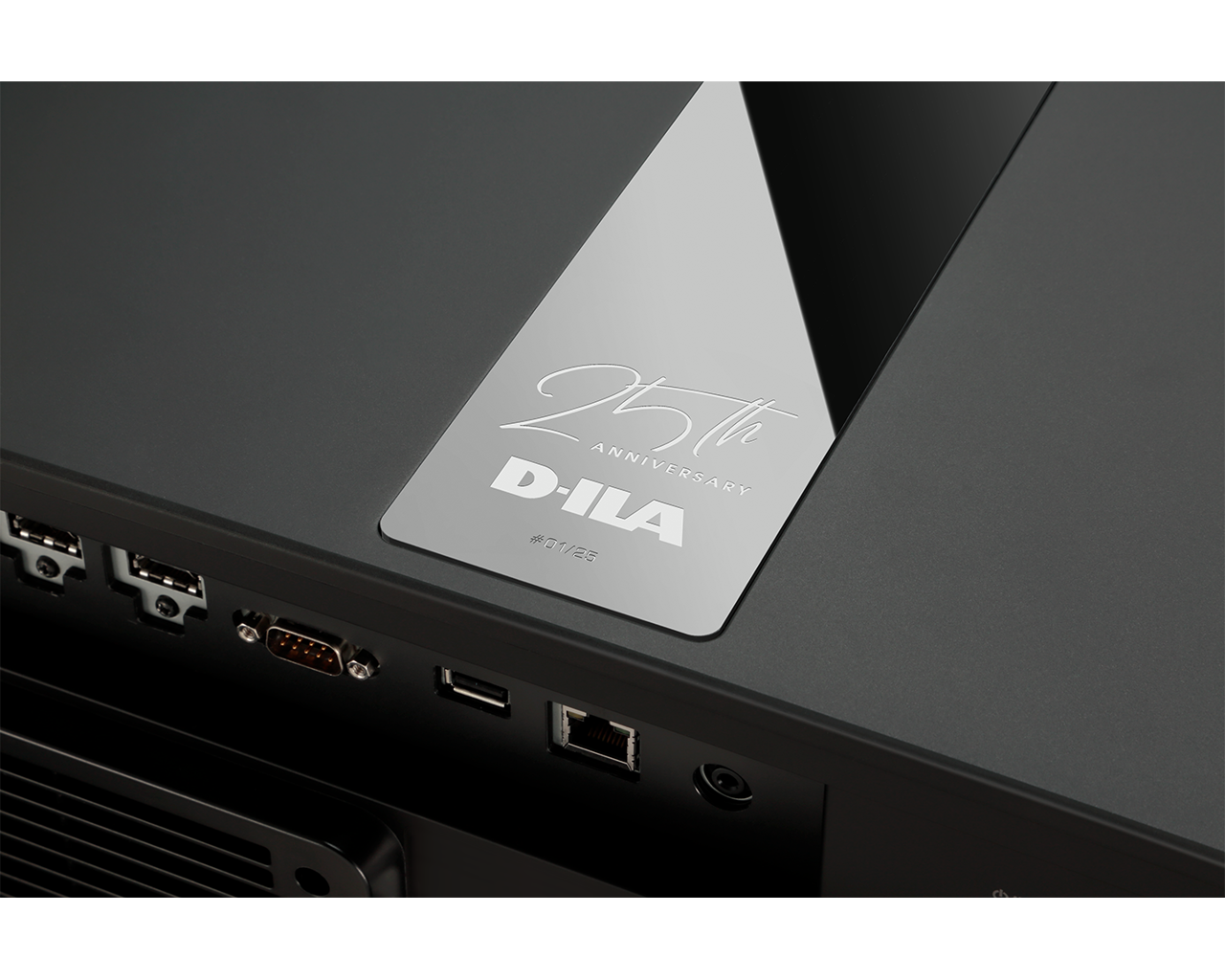

Exclusive ‘25th Anniversary’ edition with special serial number badge
BLU-Escent laser light engine with two dynamic control modes
8K/e-shiftX technology with four-pixel shift for 8K picture quality
New 0.69-inch D-ILA panels with native 4 K resolution (4096 x 2160)
Native contrast ratio of 150,000:1 and dynamic contrast of 8 :1 thanks to dynamic light source control
High light output of 3,000 lumens for true-colour and dynamic images
2 HDMI inputs (48 Gpbs, HDCP 2 .3) for signals up to 8K60P and 4K120P
FILMMAKER MODUS™ for perfect image reproduction according to the original intent of the producer (this mode was developed by the UHD Alliance).
3 Frame Adapt HDR picture modes, which can be customised to individual preferences, perform dynamic tonal mapping of HDR10 content frame by frame, making automatic adjustments for optimal results that closely resemble reality.
New ‘Theater Optimizer’ function** ensures optimal HDR playback in ‘Frame Adapt HDR’ mode, taking into account all projection parameters (screen size, gain, etc.) and automatically adjusting the colour profile.

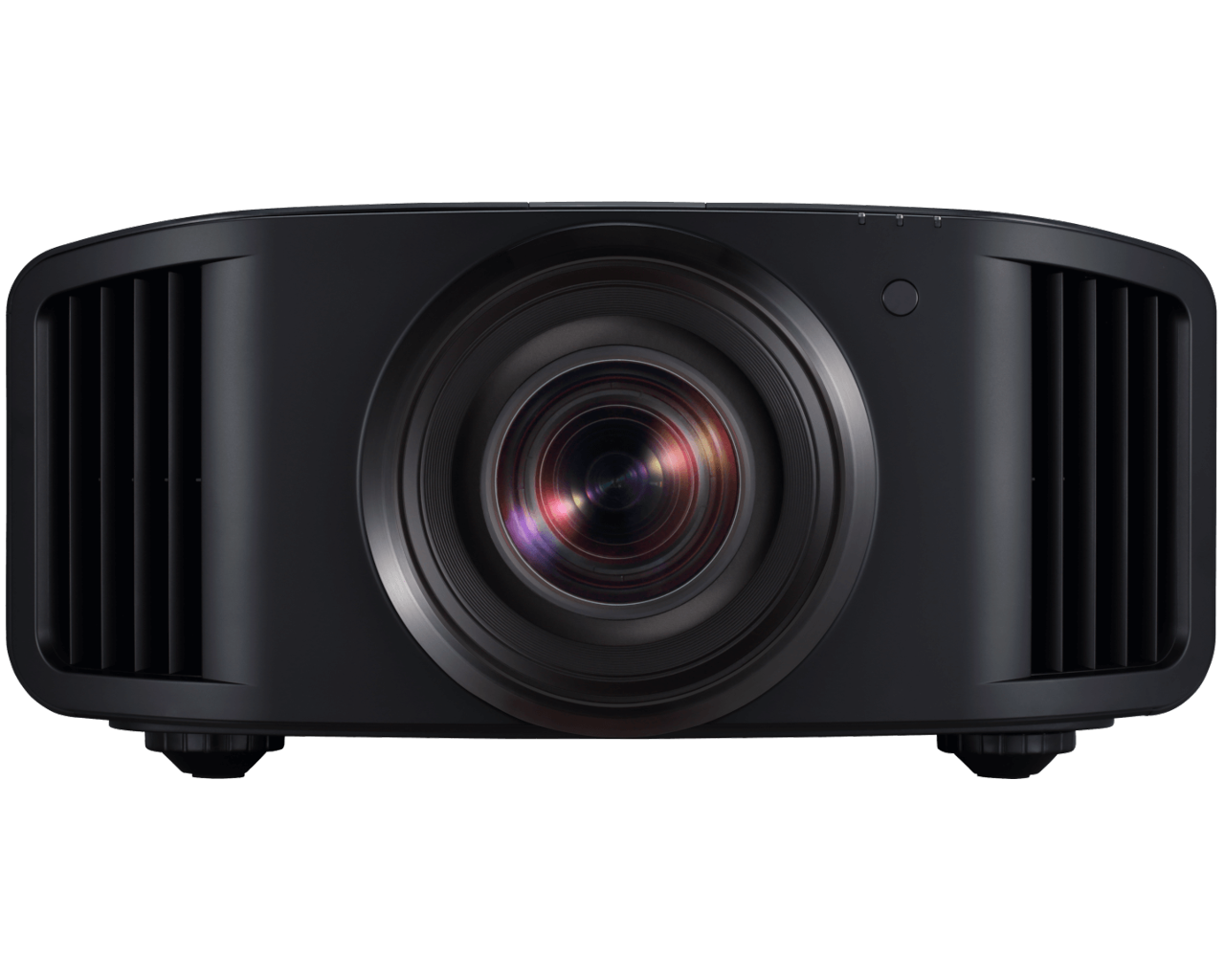

All-glass lens in an aluminium body with a diameter of 100 mm, consisting of 18 elements in 16 groups
‘Auto Tone Mapping’ function for optimal display of HDR10 content through automatic adjustment
Extensive setting options in installation mode including lens control, pixel adjustment, masking, anamorphic option, screen typing, installation type, keystone correction, cushion map and aspect ratio, up to 10 installation modes can be stored
The extended colour space beyond DCI P3 produces lifelike images with rich colours.
With an optical sensor and proprietary software*, optimal calibration can be performed in a few simple steps to adjust for changes in optical characteristics caused by the projectors installation location. Auto Calibration optimises all the essential elements of the image, including colour balance, gamma characteristics, colour space and colour control.
|
|
