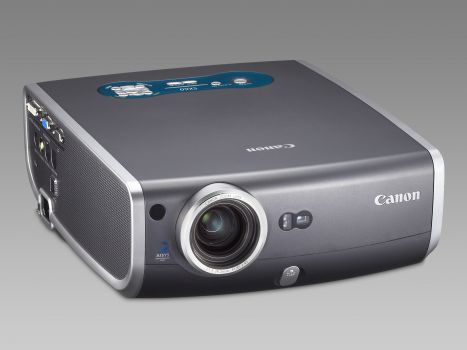

The XEED SX60 is a LCOS projector by Canon, whose specifications list 2500 ANSI lumens, a contrast of 1500:1 and a SXGA+ 1400 x 1050 resolution. In operating mode, the installed projector lamp offers a lifespan of 4000 hours – mathematically sufficient for 5.5 years based on two hours of use per day. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 435 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 290 cm. A look at the data sheet confirms a very subtle fan noise for the projector at just 30 decibels. The projector was released in 2006 and is officially no longer distributed by Canon.
Display Type
3 x 0,7" LCOS Panel SXGA 4/3 Liquid Crystal on Silicon (LCOS)
Ansi-Lumen
Projector
2500 / 2200 im Eco Mode
Screen
833 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
1,6667 min. Lumen
0,556 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
SXGA+ 1400 x 1050
1.470.000 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Freeze Blackboard Modus Eco Mode Automatic and manual vertical keystone correction Kensington Slot sRGB Gamma correction Digital image shift Password protection Remote control with mouse control 12x digital zoom
Thanks to LCoS there is practically no grid to be seen, the contrast in ECO Cinema mode is also very good, and it is extremely quiet to boot (still). It is ideally suited for presentations, film and photos, I am positively surprised by its performance, it manages the balancing act in both worlds, top device, can be recommended...
Freeze
