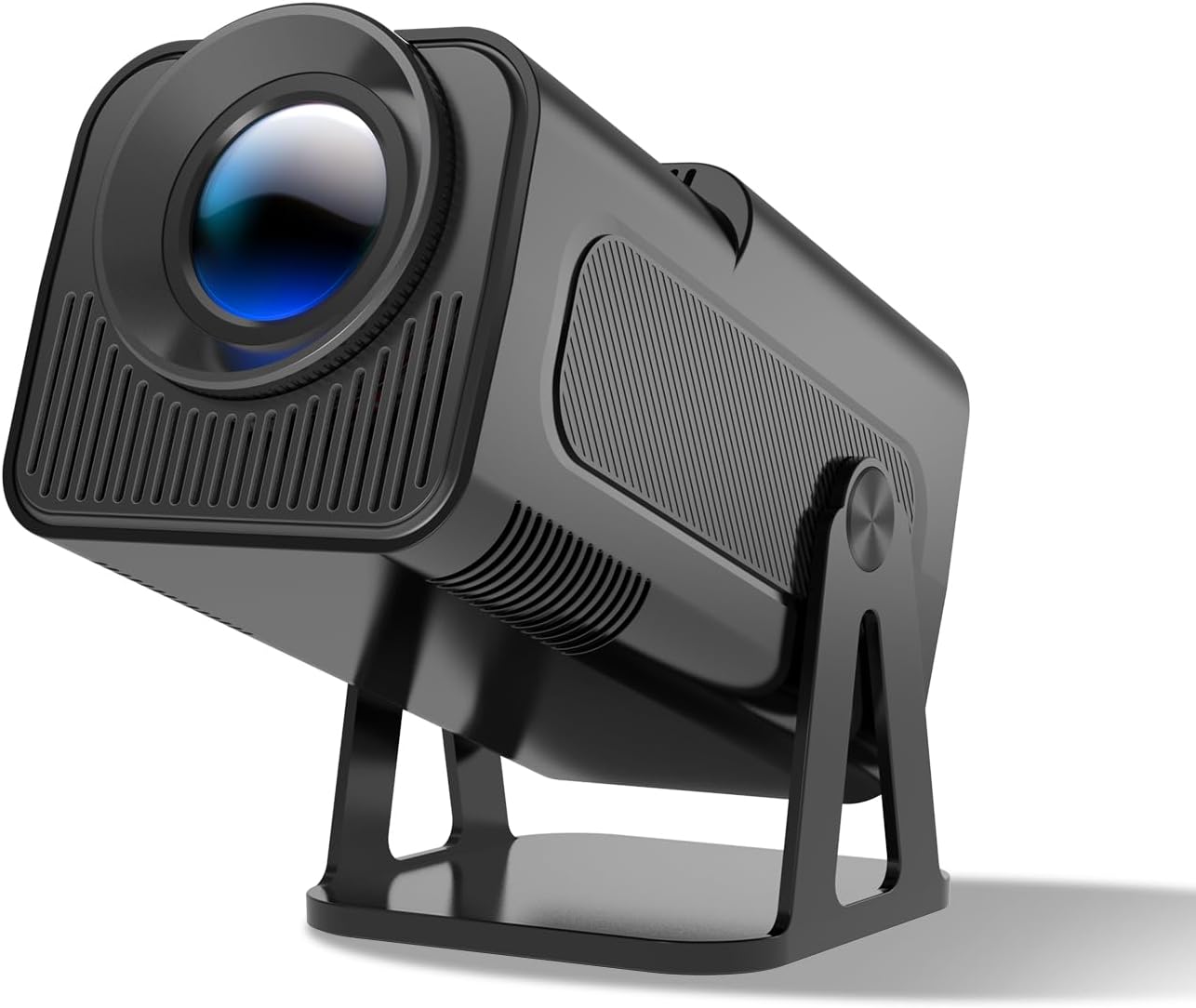

With the HY320 NTV, Magcubic offers a Laser-LCD projector that features 320 ANSI lumens, a contrast of 10000:1 and a resolution of HDTV 1920 x 1080. Magcubic lists a runtime of 30000 hours for the LED in this projector. Daily use of 4 hours makes an operational lifespan of over 20.5 years possible. Regarding projection size, the value of 320 ANSI lumens allows for an image width of up to 182 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 121 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. With a value of only 25 decibels, the noise level during operation remains pleasantly in the background.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
320
Screen
142 Lux (200 cm Screen width)
Contrast
10000:1 full on/off
10000:1 full on/off
Black Level
0,0320 min. Lumen
0,014 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
220 cm (no Zoom)
Lux:
142 Lux
Contrast:
10000:1
Candela pro m²:
45 cd/m²
Foot-Lamberts:
13 fL
•
Focus
Manual
Zoom
No Zoom 50%-100% Digital
Objective
-
Throw Ratio
1,1:1
Audio
1 x 3W
Connections
HDMI in
Composite Video
USB in
Audio Mini Jack out
Bluetooth 5.2
Full HD 1080P compatible
Product Sheet english HC
