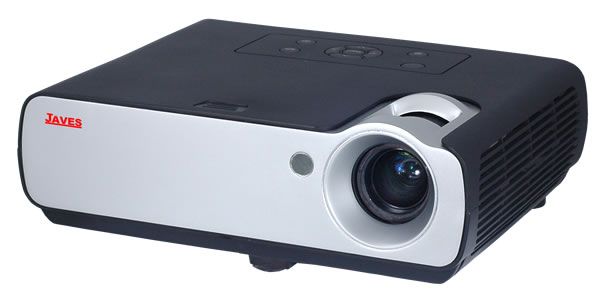

The basic data of the JAVES ADS 523 includes 2300 ANSI lumens, a resolution of SVGA 800 x 600 as well as a contrast of 1500:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. A look at the light output reveals: The 2300 ANSI lumens are sufficient to illuminate an image width of up to 418 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 279 cm. This device is no longer manufactured and has been removed from JAVES's current lineup.
Display Type
1 x 0,55" DLP Chip SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2300
Screen
767 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
1,5333 min. Lumen
0,512 min. Lumen
Offset
60% 15 cm over screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel SXGA+ 1400 x 1050 compressed
Video Modes
PAL, SECAM, NTSC, EDTV 576p
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Kensington Slot
Product Sheet english
