Brief Introduction
Beta 2.5 |
The 3M X62w standard portable LCD projector has 2500 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. The projector can illuminate a picture width of up to 435 cm thanks to its 2500 Ansi lumens. In room lighting, however, the picture width should ideally be less than 290 cm. The model was built by 3M in 2006 and is no longer current.
|
| Display Type |
3 x 0,63" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2500 / 2000 im Eco Mode |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,676 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: • JPEG (.jpeg, .JPEG)
• BMP (.bmp)
• PNG (.png)
• MPEG4 (.mp4) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHB Lamp
Article Nr.: 78-6969-9875-2
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
296 - 354 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,7-1,9 f=18,9-22,6 mm |
| Throw Ratio |
1,48-1,77:1 show |
| Audio |
1 x 1W |

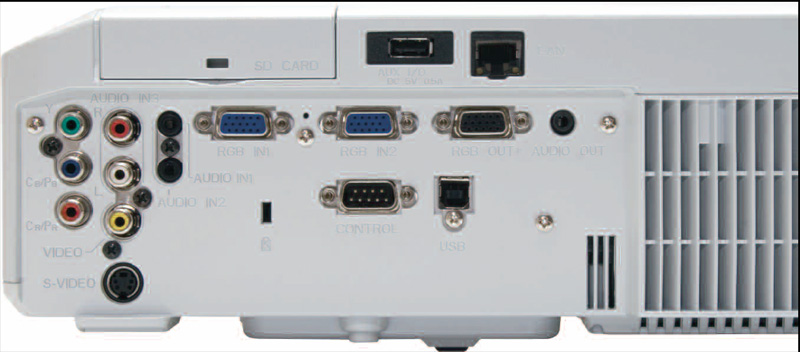

| Connections |
2 x D-sub 15pin in 1 x out
YUV in
Cinch Video in
S-Video in
Cinch Video in
Mini Jack in
RS232C Din 9 pin
USB (Wireless Lan)
RJ45 in
SD Card, USB 2.0 Memory (jpeg, bmp, png, MPEG4)
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310W |
| Size WxHxD |
306 x 106 x 249 mm (12"x4,2"x9,8") 8,08 L/dm³
|
| Operating Noise |
38 / 33 dB in Eco Mode |
|
| Weight |
3,30 kg / 7,28 lbs. |
| Keystone |
Vert.: +/-15° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Direkt Power Off
Integrated Mediaplayer
Freeze
Blank (Black screen button)
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer und mouse control
Control via web browser
Wi-Fi network compatible.
Lan network compatible.
Overscan adjustable
De-interlacer with 3:2 pull down..
|
|
- |
In Comparison
The 3M X62w compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
84 |
| Contrast: |
|
1 |
dB: |
|
28 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 37 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5524 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
