Brief Introduction
Beta 2.5 |

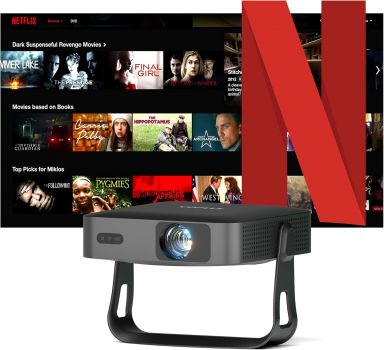

The Micro-Portable Q1 LED LCD has 1000 ANSI lumens, a contrast ratio of 20000:1, and HDTV 1920 x 1080 resolution. The LEDs have a service life of 30,000 hours, which would be over 20.5 years if viewed for 4 hours a day. Since the projector has horizontal and vertical keystone correction, it can be set up with plenty of space in the room. 1000 ANSI lumens ensure that an image width of 321 cm is also possible. However, if there is ambient light in the room, the image should not exceed 214 cm in width. The model recognizes Airplay and Miracast screen mirroring signals, making it possible to play high-resolution videos with surround sound directly via Wi-Fi from a smartphone, tablet, or PC (Android, Windows, and iOS). In addition, the Bluetooth option is a useful addition to the projector, especially for wireless audio transmission. The model is also Full HD 1080P and 4K (compressed) compatible.
|
| Display Type |
1 x LCD Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
444 Lux (200 cm Screen width) |
| Contrast |
20000:1 |
20000:1
|
| Black Level |
0,0500 min. Lumen |
0,022 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| Application |
Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
55W LED
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
444 Lux |
|
Room light max.: |
89 Lux |
|
Candela pro m²: |
140 cd/m² |
|
Foot-Lamberts: |
41 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Automatic |
| Zoom |
No Zoom 50% Digital |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
HDMI in
Mini Jack Audio out
USB in
Bluetooth 5.2
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
70W |
| Size WxHxD |
200,9 x 58,4 x 199,9 mm (7,9"x2,3"x7,8") 2,31 L/dm³
|
| Operating Noise |
- |
|
| Weight |
1,00 kg / 2,2 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
41 fL
/ max. 321 cm screen width |
| Candela m² |
140 cd/m² |
| Features |
 Full HD 1080P compatible
Wi-Fi network compatible.
Auto 6P Keystone
Automatic obstacle avoidance
Auto Screen Fit
360? adjustable stand
|
|
Miracast, Airplay, Windows |
In Comparison
The VOPLLS Q1 compared to others current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
39 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
100 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
22 |
| Ranking: |
16 (From: 276) |
|
|
|
| Status |
2024 Current model // Last update of the data: 2025-08-25
Created: 2025-08-20 12:40:47
|
| Data |
 Product Sheet english HC
|
|
 |  | |
VOPLLS Q1 |
|
