Gygar LM 22

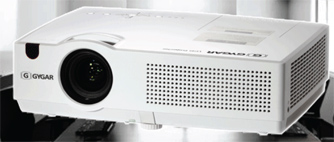

Image Gygar LM 22
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Gygar LM 22 is a LCD projector offering 3200 ANSI lumens, a contrast of 3000:1 and a resolution of XGA 1024 x 768. According to Gygar, the lamp has a durability of 4000 hours. A daily usage of 2 hours makes an operational lifespan of 5.5 years possible.
A look at the light output reveals: The 3200 ANSI lumens are sufficient to illuminate an image width of up to 493 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 329 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2013 and is no longer part of Gygar's current product range.
Display Type       3 x 0,63" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
3200
Screen
1067 Lux (200 cm Screen width)
Contrast 3000:1 full on/off 3000:1 full on/off
Black Level 1,0667 min. Lumen 0,356 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 230W Lamp
Light Life 4000 h. 5000 h. in eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
294 - 354 cm
Lux: 1067 Lux
Contrast: 3000:1
Candela pro m²: 339 cd/m²
Foot-Lamberts: 99 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=2,1-2,3 f=18,82-22,60 mm
Throw Ratio 1,47-1,77:1 show
Audio 2 x 3W
Connections HDMI in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C
RJ45 in
Ceiling Mounting -
Power 280W
Size WxHxD -
Operating Noise -
Key: 170 cm

Without offset

Key: 170 cm

Weight 2,90 kg / 6,39 lbs.
Keystone Vert.: +/-30°  automatisch
Illumination 85%
Frequenz H-sync: 15-100 kHz
V-sync: 48-100 Hz
Foot-Lamberts 99 fL / max. 493 cm screen width
Candela m² 339 cd/m²
Features Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Automatic and manual vertical keystone correction
Password protection
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Gygar LM 22 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
38 Weight:
86
Contrast:
1 dB: 0
Black level:
96 Power cons.:
97
Picture Total Points:45 Projector Total Points:0
Popularity Top 100
0 popularity points 3 popularity points 2 popularity points 0 popularity points 0 popularity points 1 popularity points
Points:
1
Ranking: 7715 (From: 7737)
Optional accessories
Airfilter universaluni3mm18,15 €
Status 2013 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english
Product Sheet english
Product Sheet english HC
