| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |
A brief introduction to the ASK Proxima C410. The standard portable LCD projector has an XGA 1024 x 768 resolution and a contrast of 800:1. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. Thanks to the brightness of 2800 Ansi lumens, a picture width of 461 cm is possible. In room light, the image should be max. 307 cm wide. Playing 1080P is also no problem for the projector. The model was built by ASK Proxima in 2004 and is no longer current.
|
| Display Type |
3 x 0,99" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
933 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
3,5000 min. Lumen |
1,171 min. Lumen |
| Offset |
50% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
250W UHP Lamp
Article Nr.: SP-LAMP-012
|
|
| Light Life |
1500 h. |
| Operating Costs |
|
|
360 - 480 cm
|
 |
|
Lux: |
933 Lux |
|
Room light max.: |
187 Lux |
|
Candela pro m²: |
298 cd/m² |
|
Foot-Lamberts: |
87 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
- |
| Throw Ratio |
1,8-2,4:1 show |
| Audio |
2 x 1W |

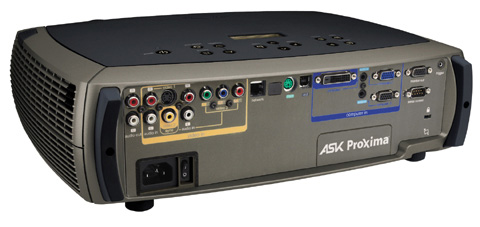

| Connections |
D-sub 15pin in und out
YUV in
RJ45 in
Cinch Video in
Cinch Stereo in und out
S-Video in
12V Trigger out
RS232C
USB in
M1 DA in
Mini Jack in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W |
| Size WxHxD |
397 x 110 x 333 mm (15,6"x4,3"x13,1") 14,54 L/dm³
|
| Operating Noise |
34dB |
Key: 243 cm |
Key: 96 cm |
| Key: 96 cm |
| |
|
|
| Weight |
6,00 kg / 13,23 lbs. |
| Keystone |
Vert.: +/-25°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 25-100 kHz
V-sync: 50-85 Hz
Range max.: 170 MHz |
| Foot-Lamberts |
87 fL
/ max. 461 cm screen width |
| Candela m² |
298 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blank (Black screen button)
Eco Mode
Kensington Slot
Warping
Picture-in-Picture
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
Lan network compatible.
|
|
- |
In Comparison
The ASK Proxima C410 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
71 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
87 |
Power cons.: |
|
96 |
| Picture Total Points: | 40 |
Projector Total Points: | 68 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
898 (From: 7662) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| Lens-021 | 2.95-5.21:1 | 590-1042 m |
50% Fix |
|
Manual |
| Lens-020 | 1.2:1 | 240 m |
50% Fix |
|
No Zoom |
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-10-26
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (3.42 MB)

|
