Brief Introduction
Beta 2.5 |
A brief introduction to the Appotronics AL-DH620A. The stationary DLP laser projector has an HDTV 1920 x 1080 resolution and a contrast of 35000:1. The manufacturer states a laser life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. With the lens shift function, the projector can be positioned very freely. An image width of up to 880 cm is possible as the projector has 7500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 587 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Furthermore, the projector can play 1080P without any problems and can even project Blu-rays onto the ceiling thanks to 360� projection.
|
| Display Type |
1 x 0,65" DMD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
7500 |
Screen |
3333 Lux (200 cm Screen width) |
| Contrast |
35000:1 full on/off |
35000:1 full on/off
|
| Black Level |
0,2143 min. Lumen |
0,095 min. Lumen |
| Lens shift |
Vert.: +/-100% Hori.: +/-40% powered
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
ALPD® Laser (Laser type: Class 1)
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
280 - 504 cm
|
 |
|
Lux: |
3333 Lux |
|
Room light max.: |
667 Lux |
|
Candela pro m²: |
1062 cd/m² |
|
Foot-Lamberts: |
310 fL |
|
 |
| 113 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,8 |
| Objective |
F=1,23-1,97 |
| Throw Ratio |
1,4-2,52:1 show |
| Audio |
- |

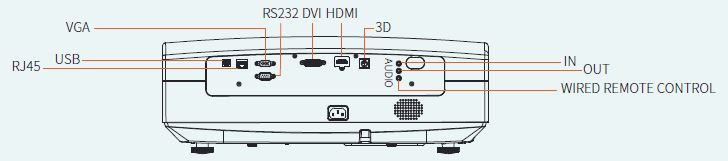

| Connections |
HDMI in
DVI-D in
D-sub 15pin in und out
RS232C Din 9 pin in
RJ45 in
3D SYNC out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
550W |
| Size WxHxD |
490 x 162 x 353 mm (19,3"x6,4"x13,9") 28,02 L/dm³
|
| Operating Noise |
35dB |
Key: 102 cm
Shift: 113 cm |
Key: 102 cm
Shift: 80 cm |
| Key: 102 cm
Shift: 80 cm |
| |
|
|
| Weight |
13,00 kg / 28,66 lbs. |
| Keystone |
Vert.: +/-20°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
310 fL
/ max. 880 cm screen width |
| Candela m² |
1062 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion powered
360° installable
Edge Blending
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Appotronics AL-DH620A compared to others current "Stationary" projectors. |
| Ansi-Lumen: |
|
74 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
58 |
| Black level: |
|
98 |
Power cons.: |
|
77 |
| Picture Total Points: | 58 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
153 (From: 231) |
|
|
|
|
|
| Status |
2022 Current model // Last update of the data: 2024-05-16
|
