Brief Introduction
Beta 2.5 |

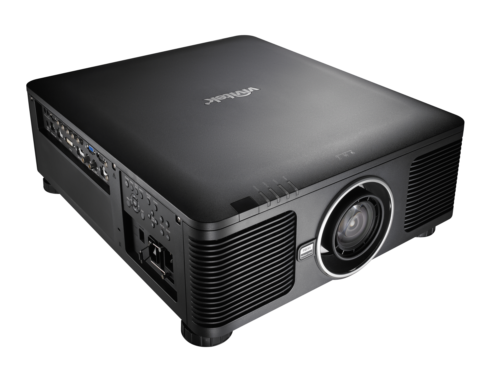

A brief introduction to the Vivitek DU8195Z. The DLP laser projector has a WUXGA 1920 x 1200 resolution and a contrast of 10000:1. The manufacturer specifies a laser life of 20000 hours, which converts to over 13.7 years at 4 hours per day. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. Thanks to the brightness of 13500 Ansi lumens, an image width of 1180 cm is possible. The projector will also manage slightly brighter rooms with a smaller image width (we recommend a maximum of 787 cm). If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. It is also Full HD 1080P and 3D compatible, meaning it can even project Blu-rays onto the ceiling thanks to 360° projection. The model built in 2019 is no longer offered by Vivitek.
|
| Display Type |
1 x 0,67" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
13500 |
Screen |
6000 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
1,3500 min. Lumen |
0,6 min. Lumen |
| Lens shift |
Vert.: +64% -33% Hori.: +24% -14%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
6000 Lux |
|
Room light max.: |
1200 Lux |
|
Candela pro m²: |
1908 cd/m² |
|
Foot-Lamberts: |
557 fL |
|
 |
| 72 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,31 |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |

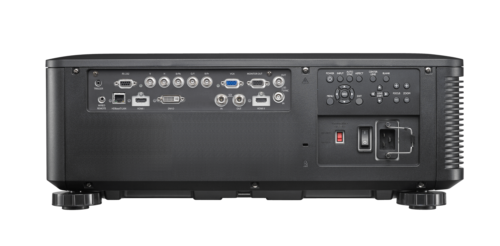

| Connections |
2 x HDMI 1.4a in
1 x DVI-D in
5 x BNC RGBHV in
D-sub 15pin in und out
RS232C Din 9 pin in
3G-SDI-In/Out
RJ45 mit HDBase in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
850 / 675W in Eco Mode |
| Size WxHxD |
500 x 205 x 580 mm (19,7"x8,1"x22,8") 59,45 L/dm³
|
| Operating Noise |
40dB |
Shift: 72 cm
|
Shift: 28 cm
|
|
Shift: 48 cm
|
| |
|
|
| Weight |
28,00 kg / 61,73 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-60°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-90 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
557 fL
/ max. 1180 cm screen width |
| Candela m² |
1908 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Warping
360° installable
Edge Blending
Optional Wi-Fi network compatible.
Lan network compatible.
Picture-in-picture
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Vivitek DU8195Z compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
10 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
74 |
| Black level: |
|
98 |
Power cons.: |
|
93 |
| Picture Total Points: | 36 |
Projector Total Points: | 86 |
|
| Popularity Top 100 |
|
| Points: |
|
52 |
| Ranking: |
57 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2024-05-16
