Brief Introduction
Beta 2.5 |

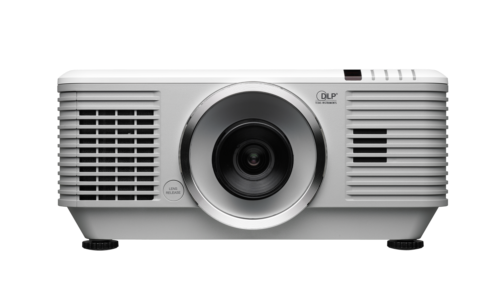

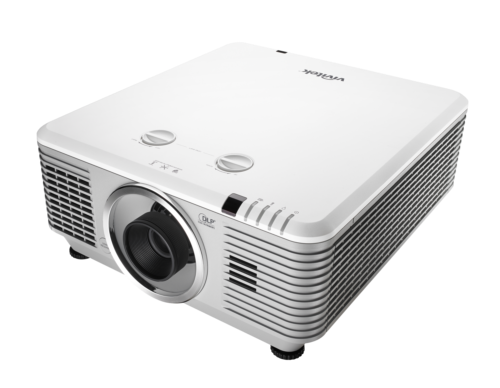

The Vivitek model DU7098Z /WH/BK is a DLP laser projector with WUXGA 1920 x 1200 resolution and a contrast of 20000:1. The service life is 20000 hours due to the laser, which converts to over 13.7 years at 4 hours per day. Including a lens shift and keystone correction function, which provides freedom during installation. Thanks to the brightness of 7000 Ansi lumens, a picture width of 850 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 567 cm). Video signals 1080P and 4K (compressed) as well as 3D are also no problem for the projector, which means that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
1 x 0,67" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
7000 |
Screen |
3111 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,3500 min. Lumen |
0,156 min. Lumen |
| Lens shift |
Vert.: +55% -15% Hori.: +/-5%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser-Phosphor
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
346 - 454 cm
|
 |
|
Lux: |
3111 Lux |
|
Room light max.: |
622 Lux |
|
Candela pro m²: |
990 cd/m² |
|
Foot-Lamberts: |
289 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
F=2,0-2,09 f=22,82-28,5 mm |
| Throw Ratio |
1,73-2,27:1 show |
| Audio |
2 x 10W |

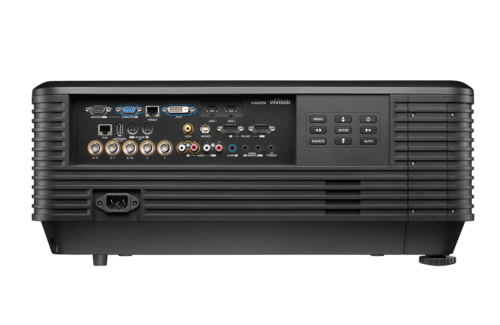

| Connections |
2 x HDMI 1.4 in
1 x DVI-D in
5 x BNC RGBHV in
D-sub 15pin in und out
RS232C Din 9 pin in
Cinch Stereo min
USB Typ A,B
RJ45 in
HDBaseT in
3D-Sync in und out
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
630 / 520W in Eco Mode |
| Size WxHxD |
517 x 202 x 470 mm (20,4"x8"x18,5") 49,08 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
Key: 200 cm
Shift: 62 cm |
Key: 161 cm
Shift: 10 cm |
| Key: 161 cm
Shift: 10 cm |
| |
|
|
| Weight |
23,00 kg / 50,71 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-25°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-90 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
289 fL
/ max. 850 cm screen width |
| Candela m² |
990 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Warping
24/7 continuous operation capable
Lan network compatible.
Crestron®-Software compatible.
Modell WH ist weiß.
Modell BK ist schwarz.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Vivitek DU7098Z /WH/BK compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
69 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
65 |
| Black level: |
|
98 |
Power cons.: |
|
73 |
| Picture Total Points: | 56 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
64 |
| Ranking: |
27 (From: 2514) |
|
|
|
| Please note |
Model WH is white.
Model BK is black.
|
|
|
|
Optional Lenses |
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2025-04-07
Created: 2019-08-11 16:48:08
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (9.59 MB)

|
Vivitek Website
