Brief Introduction
Beta 2.5 |

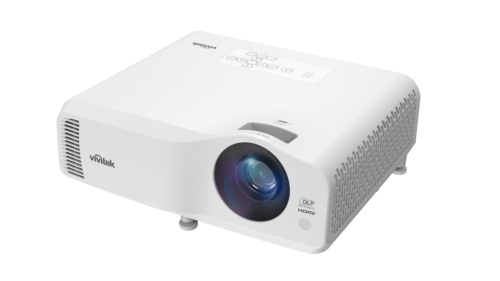

Manufacturer Vivitek offers the DH2661Z, a DLP laser projector with HDTV 1920 x 1080 resolution and a contrast ratio of 30000:1. The manufacturer specifies a laser lifetime of 20,000 hours, which would be over 13.7 years with 4 hours of viewing per day. Horizontal and vertical keystone correction ensures easy image setup. An image width of up to 643 cm is possible; if the image width is smaller (we recommend max. 429 cm), even rooms with residual light are no problem. The projector can also play 1080P and 4K (compressed) as well as 3D, meaning that all currently available Blu-ray formats can be recognized by the projector.
|
| Display Type |
1 x 0,65" DMD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
30000:1 full on/off |
30000:1 full on/off
|
| Black Level |
0,1333 min. Lumen |
0,059 min. Lumen |
| Offset |
57% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
Article Nr.: XX5040005400
|
|
| Light Life |
20000 h. Normal / 30000 h. Eco |
| Operating Costs |
0,00 € Laser
|
|
295 - 351 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 64 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,19 |
| Objective |
F=2,5-2,66 f=22,00-25,42 mm |
| Throw Ratio |
1,475-1,753:1 show |
| Audio |
10W Mono |

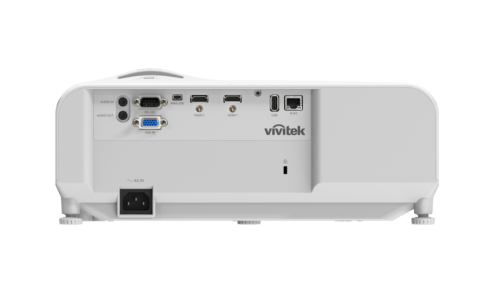

| Connections |
2x HDMI in
D-sub 15pin in und out
Mini Jack Audio in und out
USB-B mini in
USB-A in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
353 x 144 x 290 mm (13,9"x5,7"x11,4") 14,74 L/dm³
|
| Operating Noise |
33 / 31 dB in Eco Mode |
Key: 234 cm |
Key: 170 cm |
| Key: 170 cm |
| |
|
|
| Weight |
4,80 kg / 8,82 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Vivitek DH2661Z compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
56 |
Weight: |
|
61 |
| Contrast: |
|
1 |
dB: |
|
69 |
| Black level: |
|
98 |
Power cons.: |
|
0 |
| Picture Total Points: | 52 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3933 (From: 7662) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2023-10-26
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (4.64 MB)

|
Vivitek Website
