Brief Introduction
Beta 2.5 |
A brief introduction to the LSC521WU: The Viewsonic standard portable laser LCD projector offers 5200 Ansi lumens, a contrast of 3000000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The built-in lens shift and keystone correction function provides freedom when adjusting the projection. 628 cm image width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, max. 419 cm is recommended here. Playing 1080P is also no problem for the projector, and it even has the option of projecting HD 1080P Blu-rays onto the ceiling thanks to 360° projection.
|
| Display Type |
3 x 0,64" LCD Panel with MLA
WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
5200 |
Screen |
2311 Lux (200 cm Screen width) |
| Contrast |
3000000:1 |
3000000:1
|
| Black Level |
0,0017 min. Lumen |
0,001 min. Lumen |
| Lens shift |
Vert.: +45% -0%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser Phosphor
|
|
| Light Life |
20000 h. / 30000 h. in Eco Mode |
| Operating Costs |
0,00 € Laser
|
|
216 - 352 cm
|
 |
|
Lux: |
2311 Lux |
|
Room light max.: |
462 Lux |
|
Candela pro m²: |
737 cd/m² |
|
Foot-Lamberts: |
215 fL |
|
 |
| 51 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,63 |
| Objective |
F=1,58-2,08 f=17,2-27,7 mm |
| Throw Ratio |
1,08-1,76:1 show |
| Audio |
1 x 16W |

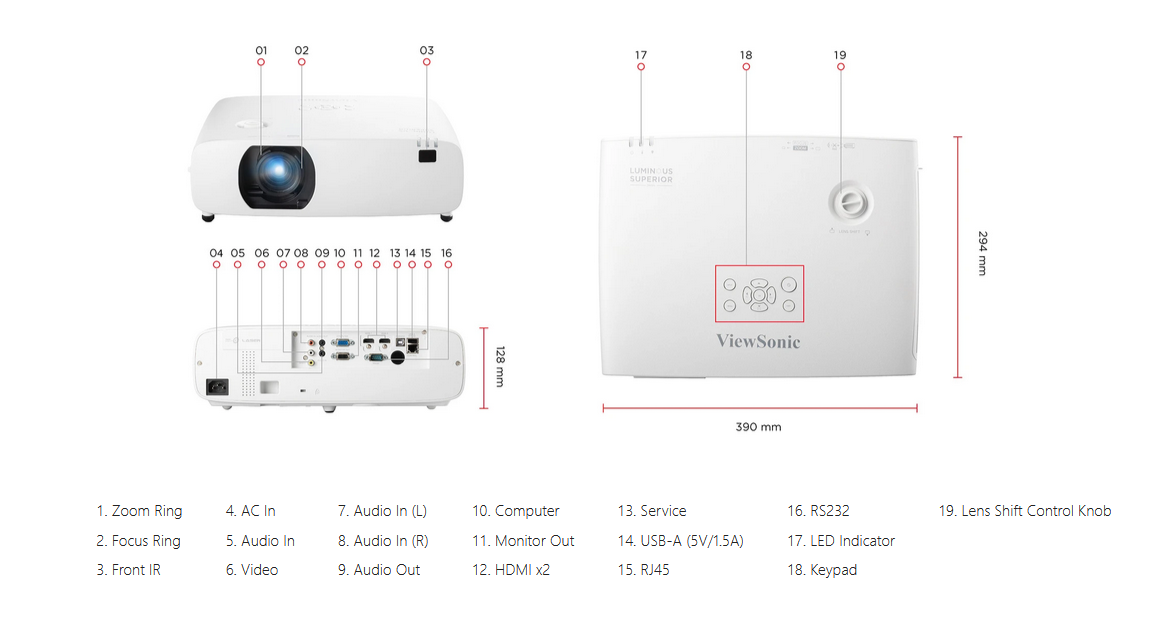

| Connections |
2x HDMI 1.4 (HDCP 1.4) in
D-sub 15pin in und out
Mini Jack Audio in und out
S-Video in
Chinch Audio in (R/L)
USB-A in
USB-B in
RS232C Din 9 pin in
HDBaseT
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
390 x 128 x 294 mm (15,4"x5"x11,6") 14,68 L/dm³
|
| Operating Noise |
35 / 26 dB in Eco Mode |
Key: 125 cm
Shift: 51 cm |
Key: 125 cm |
| Key: 125 cm |
| |
|
|
| Weight |
5,20 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 23-85 Hz
|
| Foot-Lamberts |
215 fL
/ max. 733 cm screen width |
| Candela m² |
737 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
Password protection
PJLink™
Control via web browser
Lan network compatible.
Crestron®-Software compatible.
ATEN and Extron systems compatible
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Viewsonic LSC521WU compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
73 |
Weight: |
|
42 |
| Contrast: |
|
60 |
dB: |
|
63 |
| Black level: |
|
100 |
Power cons.: |
|
61 |
| Picture Total Points: | 78 |
Projector Total Points: | 55 |
|
| Popularity Top 100 |
|
| Points: |
|
3 |
| Ranking: |
503 (From: 849) |
|
|
|
|
|
| Status |
2024 Current model // Last update of the data: 2024-10-02
