| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

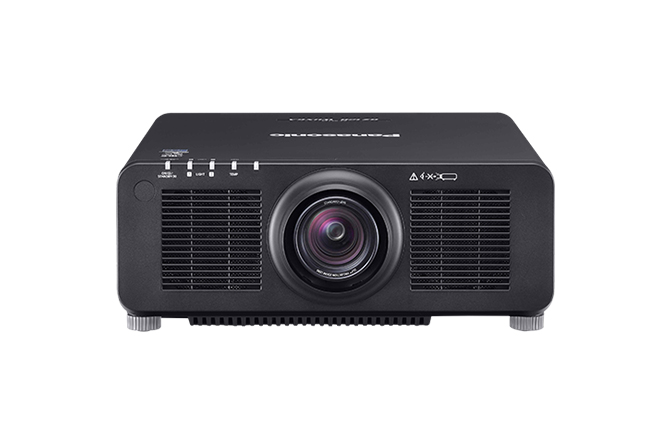

The Panasonic PT-RZ120 -B -W -LB -LW large format laser DLP projector has 12000 Ansi lumens, a contrast of 10000:1 and a WUXGA 1920 x 1200 resolution. It is a laser projector with 20000 hours of light life, which is over 13.7 years with four hours of use per day. Includes a lens shift and keystone correction function, which provides freedom during installation. 1113 cm image width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we recommend a maximum of 742 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. The model is also Full HD 1080P compatible. Even projection onto the ceiling is possible thanks to the 360° projection. The model was built by Panasonic in 2018 and is no longer current, but is still very popular in our projector database.
|
| Display Type |
1 x 0,67" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
12000 |
Screen |
5333 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
1,2000 min. Lumen |
0,533 min. Lumen |
| Lens shift |
Vert.: +50% -16% Hori.: +30% -10%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laserdiode
Article Nr.: N2QAYA000060
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
340 - 480 cm
|
 |
|
Lux: |
5333 Lux |
|
Room light max.: |
1067 Lux |
|
Candela pro m²: |
1696 cd/m² |
|
Foot-Lamberts: |
495 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,41 |
| Objective |
F=1,7-1,9 f=25,6-35,7 mm |
| Throw Ratio |
1,7-2,4:1 show |
| Audio |
Nein |
| Connections |
HDMI in
DVI-D in
D-sub 15pin in
5 x BNC RGBHV in
RS232C Din 9 pin in
RJ45 in
SDI IN BNC x 1 (3G/HD/SD-SDI)
DIGITAL LINK |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1100W |
| Size WxHxD |
498 x 200 x 581 mm (19,6"x7,9"x22,9") 57,87 L/dm³
|
| Operating Noise |
44 / 41 dB in Eco Mode |
Key: 285 cm
Shift: 56 cm |
Key: 285 cm
Shift: 20 cm |
| Key: 285 cm
Shift: 60 cm |
| |
|
|
| Weight |
23,60 kg / 50,71 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-40°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
495 fL
/ max. 1113 cm screen width |
| Candela m² |
1696 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
24/7 continuous operation capable
Edge Blending
PJLink™
Lan network compatible.
Picture-in-picture
DICOM simulation
PT-RZ120L offers the same performance as PT-RZ120, but comes without a lens.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT-RZ120 -B -W -LB -LW compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
9 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
63 |
| Black level: |
|
98 |
Power cons.: |
|
90 |
| Picture Total Points: | 36 |
Projector Total Points: | 82 |
|
| Popularity Top 100 |
|
| Points: |
|
75 |
| Ranking: |
10 (From: 576) |
|
|
|
| Optional accessories |
 | object lens Original | ET-DLE035 | 6.141,10 € |  | object lens Original | ET-DLE170 | 1.219,05 € |  | object lens Original | ET-DLE150 | 2.142,44 € |  | object lens Original | ET-DLE060 | 4.005,06 € |  | object lens Original | ET-DLE105 | 3.282,56 € |  | ceiling bracket Original | ET-PKD130B | EOL € |  | ceiling bracket Original | ET-PKD120S | EOL € |  | ceiling bracket Original | ET-PKD120H | EOL € |  | Lens Used Original | ET-DLE250 | 1.898,73 € |  | Lens Used Original | ET-DLE150Z | 1.839,23 € |  | Lens Used Original | ET-DLE450 | 1.482,23 € |  | Lens Used Original | ET-DLE350 | 2.142,44 € |  | object lens Original | ET-DLE055 | 2.631,65 € |  | Lens Used Original | ET-DLE085 | 2.811,38 € |  | remote control Original | N2QAYA000060 | EOL € |  | ceiling bracket length: 225 mm | Halterung45 | 85,80 € |
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-DLE450 | 5.36-8.58:1 | 1072-1716 m |
50-16% |
28-10% |
|
| ET-DLE350 | 3.58-5.45:1 | 716-1090 m |
50-16% |
28-10% |
Powered |
| ET-DLE250 | 2.27-3.62:1 | 454-724 m |
50-16% |
28-10% |
Powered |
| ET-DLE170 | 1.71-2.41:1 | 342-482 m |
50-16% |
28-10% |
Powered |
| ET-DLE150 | 1.3-1.89:1 | 260-378 m |
50-16% |
30-10% |
Powered |
| ET-DLE105 | 0.98-1.32:1 | 196-264 m |
50-16% |
28-10% |
Powered |
| ET-DLE085 | 0.78-0.98:1 | 156-196 m |
50-16% |
28-10% |
Powered |
| ET-DLE060 | 0.6-0.8:1 | 120-160 m |
40-16% |
19-10% |
Powered |
| ET-DLE055 | 0.79:1 | 158 m |
0.00% Fix |
19-10% |
No Zoom |
| ET-DLE035 | 0.38:1 | 76 m |
0.00% Fix |
19-10% |
No Zoom |
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2018-09-23 17:56:32
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (33.34 MB)

|
Panasonic Website
