Brief Introduction
Beta 2.5 |

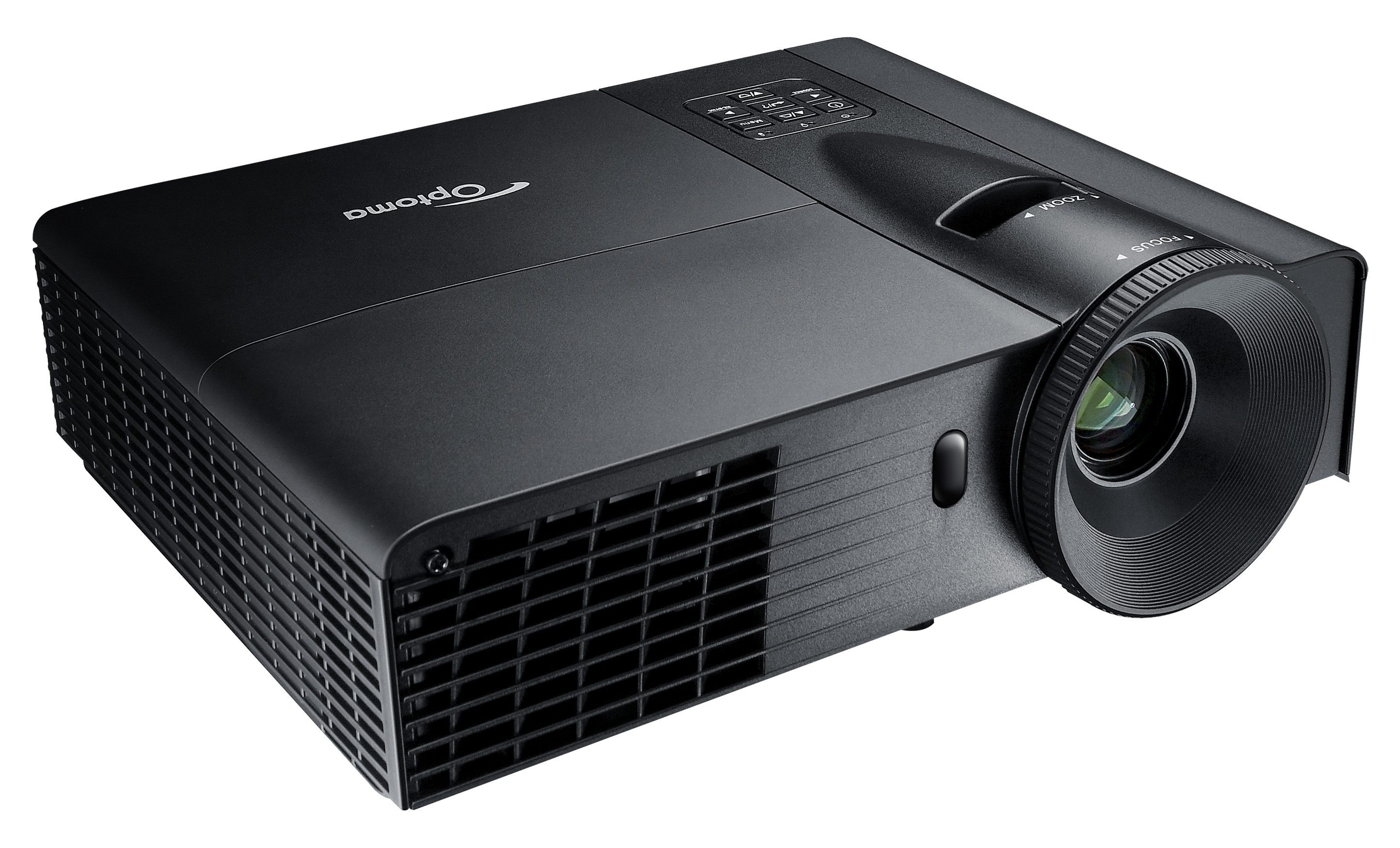

The standard portable TW556 3D 3D BrilliantColor DLP projector from Optoma has 2800 Ansi lumens, a contrast of 10000:1 and a WXGA 1280 x 800 resolution. The manufacturer Optoma specifies a lamp life of 4500 hours, which is over 6.2 years with a daily viewing time of 2 hours. A picture width of up to 538 cm is possible. However, the picture should be smaller in room light. We recommend max. 359 cm. The model is also Full HD 1080P compatible. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
1120 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,2800 min. Lumen |
0,112 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
190W Lamp
Article Nr.: BL-FU190A
|
|
| Light Life |
4500 h. 6500 h. in Eco Mode |
| Operating Costs |
|
|
310 - 340 cm
|
 |
|
Lux: |
1120 Lux |
|
Room light max.: |
224 Lux |
|
Candela pro m²: |
356 cd/m² |
|
Foot-Lamberts: |
104 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,5-2,67 f=21,8-23,98 mm |
| Throw Ratio |
1,55-1,70:1 show |
| Audio |
2W Mono |
| Connections |
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C
USB Typ B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
263 / 200W in Eco Mode |
| Size WxHxD |
287 x 88,9 x 236,20 mm (11,3"x3,5"x9,3") 5,96 L/dm³
|
| Operating Noise |
34 / 32 dB in Eco Mode |
|
| Weight |
2,27 kg / 5 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
104 fL
/ max. 538 cm screen width |
| Candela m² |
356 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Eco Mode
Kensington Slot
BrilliantColor™
Remote control with mouse control
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma TW556 3D compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 44 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1989 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (6.53 MB)

|
Optoma Website
