Brief Introduction
Beta 2.5 |

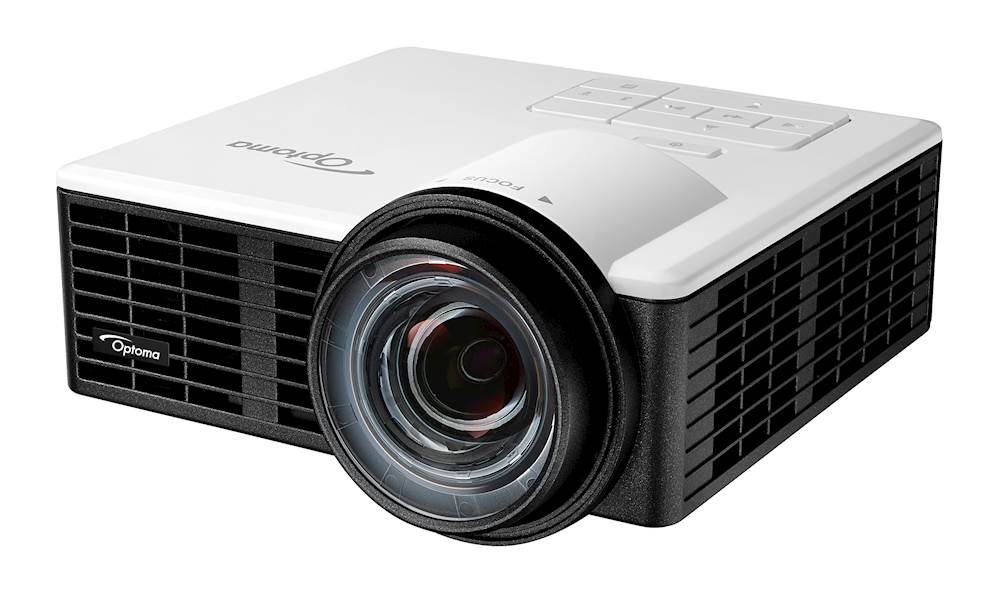

With the ML1050ST, manufacturer Optoma offers a DLP LED projector with WXGA 1280 x 800 resolution and a contrast of 20000:1. The service life of the LEDs is 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The integrated media player can play files directly. The projector can illuminate a picture width of up to 321 cm thanks to its 1000 Ansi lumens. In room light, however, the image width should ideally be less than 214 cm. A smartphone with MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz image mirroring (screen mirroring). Playing 1080P and 3D is also no problem for the projector.
|
| Display Type |
1 x DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
400 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,0500 min. Lumen |
0,02 min. Lumen |
| Offset |
50% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: Jpeg/Jpg
BMP MPG, MPEG
AVI, MOV,
MP4, MKV
AVI, MOV,
MP4,
AVI, MOV,
MP4,
AVI
WMV MP3
WMA
ADPCM-WAV(WAV)
PCM-WAV(WAV)
AAC Adobe PDF
MS Word
MS Excel MS
PowerPoint |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
LED
Article Nr.: BR-3003B / SP.8ZE01GC01
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € LED
|
|
160 cm (no Zoom)
|
 |
|
Lux: |
400 Lux |
|
Room light max.: |
80 Lux |
|
Candela pro m²: |
127 cd/m² |
|
Foot-Lamberts: |
37 fL |
|
 |
| 63 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
0,8:1 |
| Audio |
1W |
| Connections |
HDMI 1.4a mit MHL in
D-Sub 15pin in über Adapter
USB Ty Ain
microSD card
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
77W |
| Size WxHxD |
112 x 57 x 123 mm (4,4"x2,2"x4,8") 0,79 L/dm³
|
| Operating Noise |
- |
|
| Weight |
0,420 kg / 0 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
37 fL
/ max. 321 cm screen width |
| Candela m² |
127 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
24/7 continuous operation capable
Short-throw projector
|
|
über HDMI MHL |
In Comparison
The Optoma ML1050ST compared to others current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
84 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
100 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
193 (From: 276) |
|
|
|
|
|
| Status |
2018 Current model // Last update of the data: 2024-10-02
