Brief Introduction
Beta 2.5 |

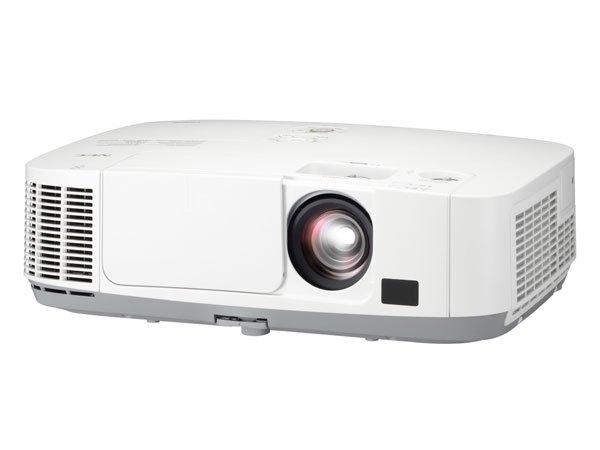

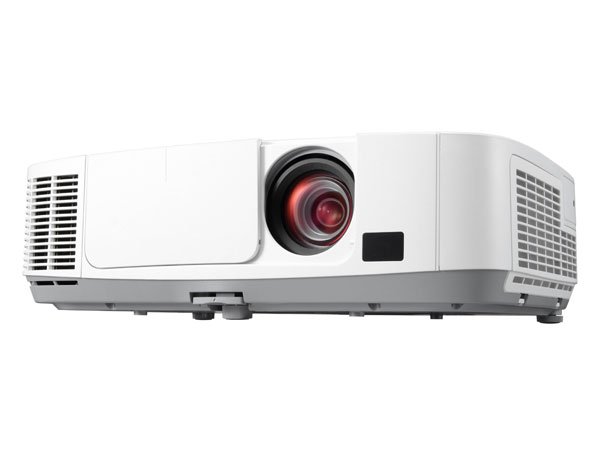

The Nec P401W LCD projector has 4000 Ansi lumens, a contrast of 4000:1 and a WXGA 1280 x 800 resolution. The lamp life is up to 4000 hours, which is equivalent to over 5.5 years at 2 hours per day. The projector also offers an integrated media player that can be used to play files directly. Including a lens shift and keystone correction function, which provides freedom during installation. A picture width of up to 643 cm is possible, if the picture width is smaller (we recommend max. 429 cm), rooms with residual light are also no problem. Even 1080P video signals are no problem for the projector. The model was built by Nec in 2013 and is no longer current.
|
| Display Type |
3 x 0,59" LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,4 min. Lumen |
| Lens shift |
Vert.: +60% -0%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: .JPEGs |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
240W Lamp
Article Nr.: NP23LP
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
|
|
260 - 440 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,69 |
| Objective |
F=1,7-2,0 f=17,4-29,0 mm |
| Throw Ratio |
1,3-2,2:1 show |
| Audio |
16W |

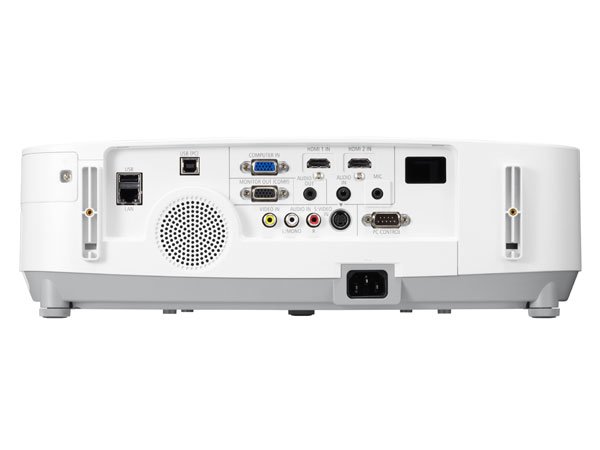

| Connections |
2 x HDMI in
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A
RS232C Din 9 pin in
Mini Jack Audio in und out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
325W |
| Size WxHxD |
398 x 127 x 282 mm (15,7"x5"x11,1") 14,25 L/dm³
|
| Operating Noise |
36 / 30 dB in Eco Mode |
Key: 150 cm
Shift: 75 cm |
Key: 150 cm |
| Key: 150 cm |
| |
|
|
| Weight |
4,10 kg / 9,04 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec P401W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
80 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
96 |
Power cons.: |
|
97 |
| Picture Total Points: | 49 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2375 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-04-16 14:36:55
|
