Brief Introduction
Beta 2.5 |

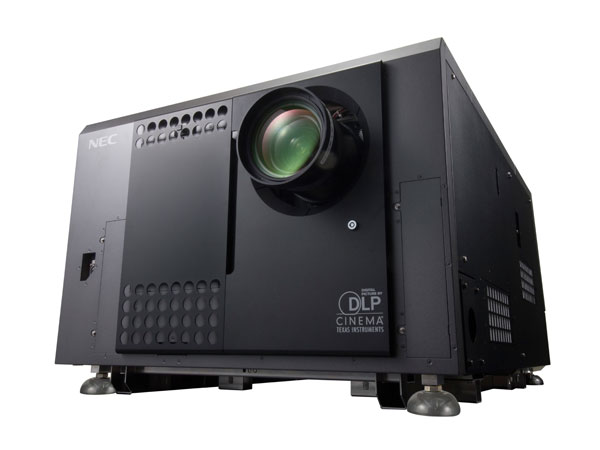

The NC3240S-A DLP projector from Nec has 33000 Ansi lumens, a contrast of 2000:1 and a UHD (4K+2K) 4096 x 2160 resolution. An image width of up to 1582 cm is possible, if the image width is smaller (we recommend max. 1055 cm), rooms with residual light are also no problem. The model is also Full HD 1080P and 4K compatible. On the market since 2011, the model is no longer offered by the manufacturer Nec, but is still very popular in our projector database.
|
| Display Type |
3 x 1,38" DLP Chip
UHD 19/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
33000 / mit 7.0KW Lampe |
Screen |
15644 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
16,5000 min. Lumen |
7,83 min. Lumen |
| Offset |
-
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p |
| Application |
E-Cinema | Digital Cinema (D-Cinema) in the movie theater.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
NC-32PS01 (7kW LPSU) / NC-32PS02 (4kW LPSU) Lamp
Article Nr.: 60002998 / NC-80AF01
|
|
| Light Life |
h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
15644 Lux |
|
Room light max.: |
3129 Lux |
|
Candela pro m²: |
4978 cd/m² |
|
Foot-Lamberts: |
1453 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
D-sub 15 pin in
HD-SDI in
2 x DVI in
RS232C Din 9 pin in
USB Typ A
RJ45 |
| Ceiling Mounting |
No, is not possible. |
| Power |
- |
| Size WxHxD |
594 x 398 x 452 mm (23,4"x15,7"x17,8") 106,86 L/dm³
|
| Operating Noise |
66dB |
|
| Weight |
97,00 kg / 213,85 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
1453 fL
/ max. 1582 cm screen width |
| Candela m² |
4978 cd/m² |
| Features |
 Full HD 1080P compatible
Control via web browser
Lan network compatible.
Integrated Media Block (IMB) and Local Storage Server
|
|
- |
In Comparison
The Nec NC3240S-A compared to others not current "E-Cinema" projectors. |
| Ansi-Lumen: |
|
51 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
3 |
| Black level: |
|
43 |
Power cons.: |
|
0 |
| Picture Total Points: | 32 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
74 |
| Ranking: |
8 (From: 139) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2025-03-03
|
