Brief Introduction
Beta 2.5 |

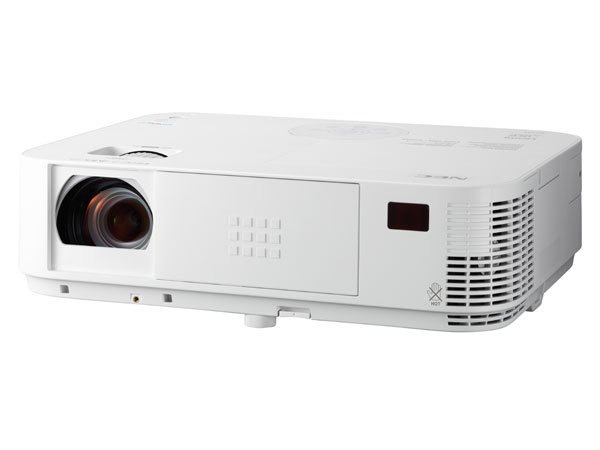

The Nec M363W 3D DLP projector has 3600 Ansi lumens, a contrast of 10000:1 and a WXGA 1280 x 800 resolution. Thanks to the ambient light sensor, the projector can automatically optimize the projected image. Includes an integrated media player with which files can be played directly. Horizontal and vertical keystone correction makes image adjustment childs play. The model offers a microphone jack plug and 20W speakers, so no additional audio devices are required for presentations or training courses. Thanks to the brightness of 3600 Ansi lumens, a picture width of 610 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 407 cm). It is also Full HD 1080P and 3D compatible. On the market since 2015, the model is no longer offered by the manufacturer Nec.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1440 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,3600 min. Lumen |
0,144 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: JPEG |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
250 / 150W im Eco Mode Lamp
Article Nr.: NP29LP
|
|
| Light Life |
3500 h. 8000 in Eco Mode |
| Operating Costs |
|
|
244 - 414 cm
|
 |
|
Lux: |
1440 Lux |
|
Room light max.: |
288 Lux |
|
Candela pro m²: |
459 cd/m² |
|
Foot-Lamberts: |
134 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,67 |
| Objective |
F=2,4-3,1 f=17,09-29,05 mm |
| Throw Ratio |
1,22-2,07:1 show |
| Audio |
20W Mono |
| Connections |
2 x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
301 / 197W in Eco Mode |
| Size WxHxD |
368 x 108 x 291 mm (14,5"x4,3"x11,5") 11,57 L/dm³
|
| Operating Noise |
36 / 31 dB in Eco Mode |
Key: 219 cm |
Key: 114 cm |
| Key: 114 cm |
| |
|
|
| Weight |
3,50 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-25°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
134 fL
/ max. 610 cm screen width |
| Candela m² |
459 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Freeze
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
Ambient Light Sensor.
Digital Zoom
Dicom Simulation
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec M363W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 48 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4653 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-12
Created: 2015-08-21 12:44:47
|
