Brief Introduction
Beta 2.5 |

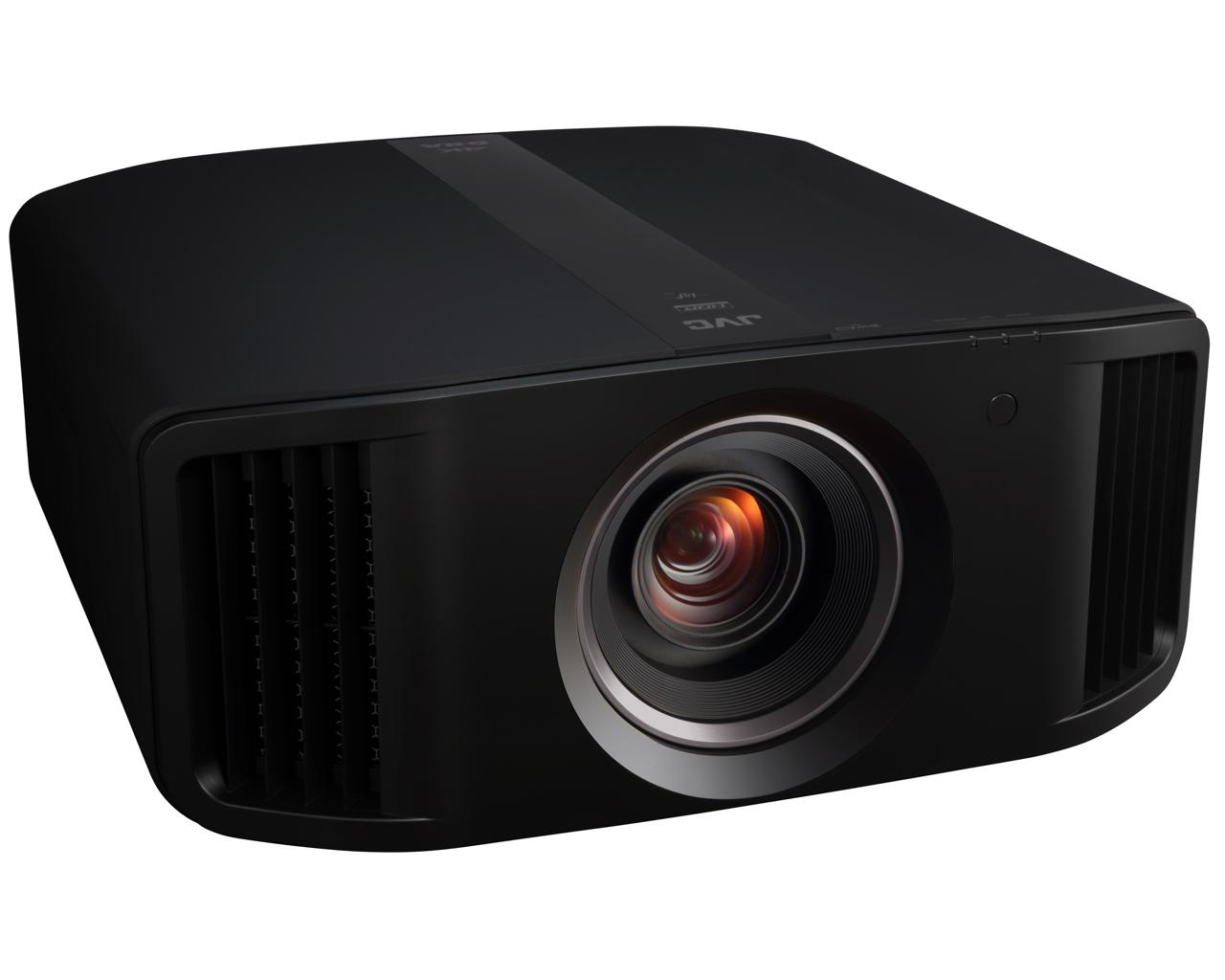

A brief introduction to the JVC DLA-RS1100. The high-end home cinema DILA projector has a UHD (4K2K) 3840 x 2160 resolution and a contrast of 40000:1. The projector can be positioned very freely using the lens shift function. The projector will be able to illuminate a picture width of 443 cm well. However, if there is room light, the picture width should ideally not exceed 295 cm. Furthermore, it is Full HD 1080P and 4K as well as 3D compatible, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,69" D-ILA Chip
UHD 16/9 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1900 |
Screen |
844 Lux (200 cm Screen width) |
| Contrast |
40000:1 full on/off |
40000:1 full on/off
|
| Black Level |
0,0475 min. Lumen |
0,021 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-43%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
265W Lamp
|
|
| Light Life |
- |
| Operating Costs |
-
|
|
284 - 582 cm
|
 |
|
Lux: |
844 Lux |
|
Room light max.: |
169 Lux |
|
Candela pro m²: |
267 cd/m² |
|
Foot-Lamberts: |
78 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,01 |
| Objective |
- |
| Throw Ratio |
1,42-2,91:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI mit HDCP 2.2 in
RS232C Din 9 pin in
12V Trigger out
USB Typ A
RJ45in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
420W |
| Size WxHxD |
500 x 234 x 495 mm (19,7"x9,2"x19,5") 57,92 L/dm³
|
| Operating Noise |
24 dB in Eco Mode |
Shift: 90 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
19,60 kg / 43,21 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
78 fL
/ max. 443 cm screen width |
| Candela m² |
267 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
High Dynamic Range (HDR)
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The JVC DLA-RS1100 compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
2 |
Weight: |
|
46 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
87 |
Power cons.: |
|
43 |
| Picture Total Points: | 30 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
361 (From: 499) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2025-04-07
Created: 2022-03-22 10:33:50
|
