Brief Introduction
Beta 2.5 |

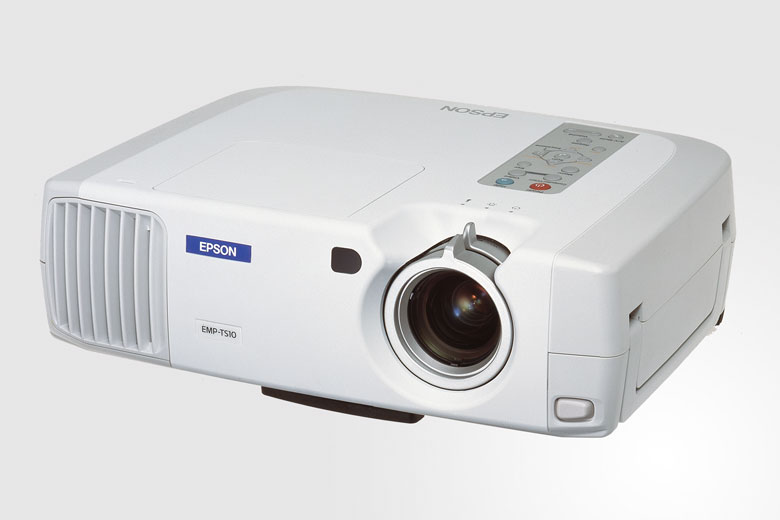

A brief introduction to the Epson EMP TS10. The LCD projector has an SVGA 800 x 600 resolution and a contrast of 500:1. Horizontal and vertical keystone correction makes setting up the image childs play. The projector can illuminate a picture width of 230 cm well. However, if room light is available, the picture width should ideally not exceed 153 cm. This model is no longer offered by Epson.
|
| Display Type |
3 x 0,9" LCD TFT Panel
SVGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
700 |
Screen |
233 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
1,4000 min. Lumen |
0,469 min. Lumen |
| Offset |
50% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC/NTSC4.43/PAL/MPAL/NPAL/PAL60/SECAM |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
150W UHE Lamp
Article Nr.: ELPLP17
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
302 - 410 cm
|
 |
|
Lux: |
233 Lux |
|
Room light max.: |
47 Lux |
|
Candela pro m²: |
75 cd/m² |
|
Foot-Lamberts: |
22 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,34 |
| Objective |
F=1,74-2,06 f=28,3-37,98 mm |
| Throw Ratio |
1,51-2,05:1 show |
| Audio |
Built-in loudspeaker |
| Connections |
DVI-I
D-sub 15pin in und out
S-Video
Cinch Video in
Mini Jack in
USB TypB
Fernbedienung |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
349 x 114 x 276 mm (13,7"x4,5"x10,9") 10,98 L/dm³
|
| Operating Noise |
31dB |
Key: 249 cm |
Key: 53 cm |
| Key: 53 cm |
| |
|
|
| Weight |
4,20 kg / 9,26 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-10°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-107 kHz
V-sync: 43-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
22 fL
/ max. 230 cm screen width |
| Candela m² |
75 cd/m² |
| Features |
 Freeze
Kensington Slot
sRGB
Remote control with backlight
No Faroudja Linedoubling only normal interpolation.
|
|
- |
In Comparison
The Epson EMP TS10 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
5 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
63 |
| Black level: |
|
84 |
Power cons.: |
|
95 |
| Picture Total Points: | 30 |
Projector Total Points: | 86 |
|
| Popularity Top 100 |
|
| Points: |
|
16 |
| Ranking: |
145 (From: 984) |
|
|
|
| In Test
|
-
|
| Please note |
No Faroudja Linedoubling only normal interpolation.
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2025-03-03
|
