Brief Introduction
Beta 2.5 |

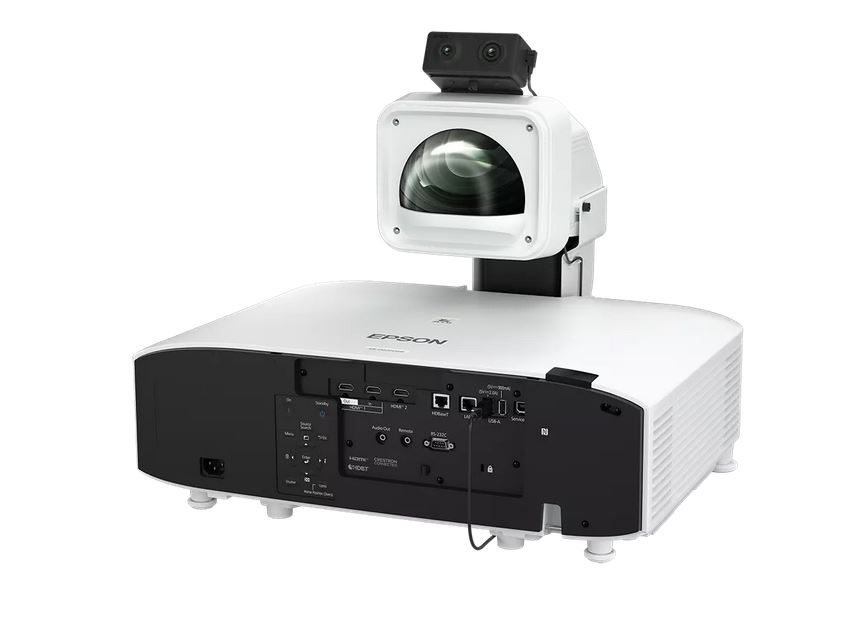

The Epson EB-PQ2216W/B large format laser LCD projector has 16000 Ansi lumens, a contrast of 3000:1 native contrast and a UHD (4K2K) 3840 x 2160 resolution. The manufacturer Epson specifies a service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. Horizontal and vertical keystone correction makes image adjustment childs play. 16000 Ansi lumens ensure that a picture width of 1285 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 857 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Furthermore, the projector can play 1080P and 4K without any problems, and even has the option of projecting HD 1080P and 4K Blu-rays onto the ceiling using 360� projection.
|
| Display Type |
3 x 1,04" LCD MLR C2 Panel
UHD 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
16000 |
Screen |
7111 Lux (200 cm Screen width) |
| Contrast |
3000:1 nativer Contrast |
3000:1 nativer Contrast
|
| Black Level |
5,3333 min. Lumen |
2,372 min. Lumen |
| Offset |
-
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. / 30000 h. Eco |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
7111 Lux |
|
Room light max.: |
1422 Lux |
|
Candela pro m²: |
2265 cd/m² |
|
Foot-Lamberts: |
661 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
2x HDMI in (1x out)
12G-SDI in und out
Mini Jack Audio out
Wired Remote
2x USB-A in
USB-B in
NFC
RJ45 in
HDBaseT in
RS-232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
545 x 189 x 436 mm (21,5"x7,4"x17,2") 44,91 L/dm³
|
| Operating Noise |
39 / 29 dB in Eco Mode |
|
| Weight |
18,80 kg / 39,68 lbs. |
| Keystone |
Vert.: +/-45°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
661 fL
/ max. 1285 cm screen width |
| Candela m² |
2265 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Password protection
PJLink™
Lan network compatible.
EPPT software
Stacking
21:9 aspect ratio support
Memory for lens position
DICOM SIM
AMX
Extron IP Link
Epson Creative Projection
Epson Projector Config Tool
Epson Projector Content Manager
Epson Projector Management
Epson Projector Professional Tool
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EB-PQ2216W/B compared to others current "Event" projectors. |
| Ansi-Lumen: |
|
13 |
Weight: |
|
96 |
| Contrast: |
|
1 |
dB: |
|
78 |
| Black level: |
|
80 |
Power cons.: |
|
0 |
| Picture Total Points: | 31 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
37 (From: 153) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ELPLL08 | 5.27-7.41:1 | 1054-1482 m |
+/-60% |
+/-18% |
Powered |
| ELPLM11 | 3.54-5.41:1 | 708-1082 m |
+/-60% |
+/-18% |
Manual |
| ELPLM10 | 2.42-3.71:1 | 484-742 m |
+/-60% |
+/-18% |
Powered |
| ELPLM15 | 1.57-2.56:1 | 314-512 m |
+/-60% |
+/-18% |
Powered |
| ELPLW06 | 1.19-1.62:1 | 238-324 m |
+/-60% |
+/-18% |
Powered |
| ELPLW08 | 0.86-1.21:1 | 172-242 m |
+/-60% |
+/-18% |
Powered |
| ELPLU04 | 0.64-0.77:1 | 128-154 m |
+/-60% |
+/-18% |
Powered |
| ELPLU03 | 0.48-0.57:1 | 96-114 m |
+/-24% |
+/-10% |
Powered |
| ELPLX02 / ELPLX02W | 0.35:1 | 70 m |
+/-15% |
+/-15% |
No Zoom |
|
| Status |
2024 Current model // Last update of the data: 2024-06-10
