Brief Introduction
Beta 2.5 |

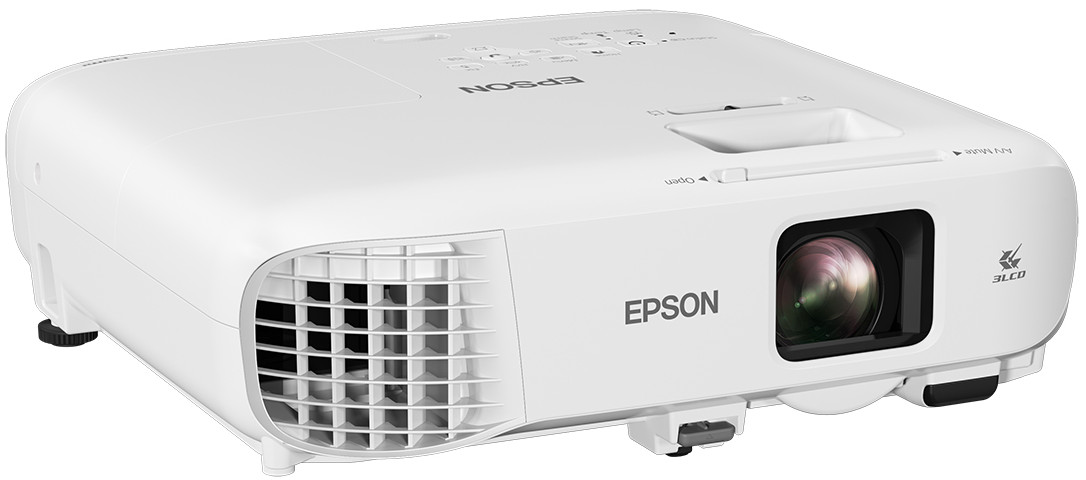

The EB-2142W LCD projector from Epson has 4200 Ansi lumens, a contrast of 15000:1 and a WXGA 1280 x 800 resolution. The lamp in the projector is specified with a lamp life of 12000 hours, which converts to over 16.4 years at 2 hours per day. The integrated media player allows files to be played directly. Horizontal and vertical keystone correction makes image adjustment childs play. As the EB-2142W is equipped with a microphone jack plug and 16W speakers, no additional audio system is required for presentations or training courses. Thanks to the brightness of 4200 Ansi lumens, a screen width of 658 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 439 cm). A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. The model is also Full HD 1080P compatible. The model was built by Epson in 2018 and is no longer current.
|
| Display Type |
3 x 0,59" DC8 LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4200 / 2400 im Eco Mode |
Screen |
1680 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,2800 min. Lumen |
0,112 min. Lumen |
| Offset |
40,91% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: JPEG |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
230W Lamp
Article Nr.: ELPLP96 / V13H010L96
|
|
| Light Life |
6000 h. 12000 h. in Eco Mode |
| Operating Costs |
|
|
270 - 448 cm
|
 |
|
Lux: |
1680 Lux |
|
Room light max.: |
336 Lux |
|
Candela pro m²: |
534 cd/m² |
|
Foot-Lamberts: |
156 fL |
|
 |
| 51 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,66 |
| Objective |
F=1,51-1,99 f=18,2-29,2 mm |
| Throw Ratio |
1,35-2,24:1 show |
| Audio |
16W |
| Connections |
2 x HDMI mit MHL in
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
331 / 227W in Eco Mode |
| Size WxHxD |
309 x 90 x 282 mm (12,2"x3,5"x11,1") 7,84 L/dm³
|
| Operating Noise |
37 / 28 dB in Eco Mode |
Key: 207 cm |
Key: 98 cm |
| Key: 98 cm |
| |
|
|
| Weight |
3,10 kg / 6,83 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
156 fL
/ max. 658 cm screen width |
| Candela m² |
534 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Freeze
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Password protection
Optional Wi-Fi network compatible.
Lan network compatible.
Keystone Automatic Horizontal
|
|
über HDMI MHL |
In Comparison
The Epson EB-2142W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
51 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 50 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1716 (From: 7662) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2018-01-11 12:04:37
|
| Data |
 Product Sheet english
Product Sheet english HC

|
Epson Website
